SKU: TA.6525.Z

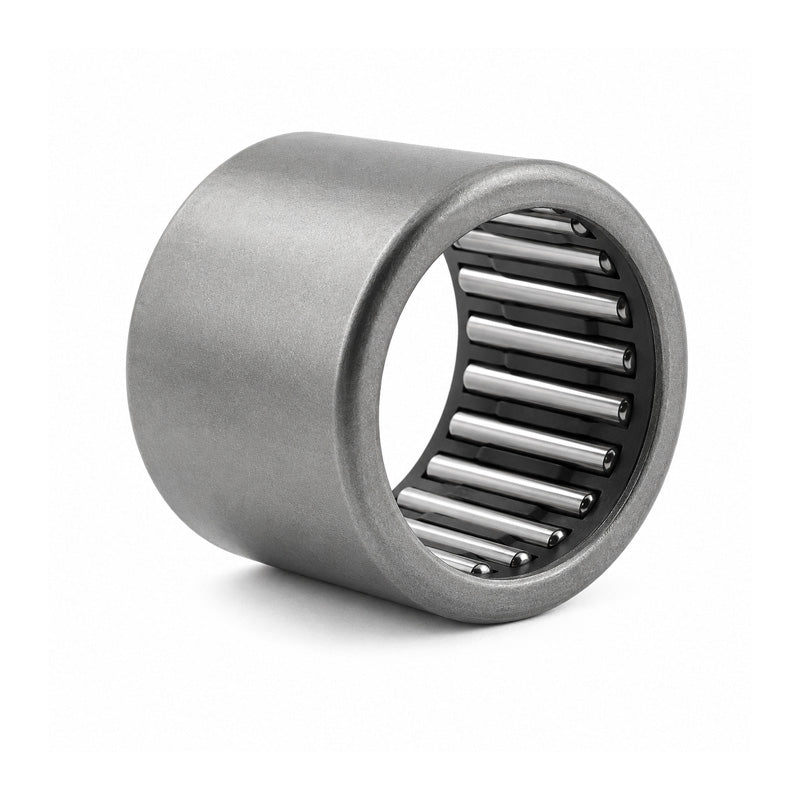

IKO TA6525Z Needle Roller Bearing Open End Type 65x77x25mm
IKO TA6525Z Needle Roller Bearing Open End Type 65x77x25mm
Regular price
£15.49
ex VAT£18.59inc. VAT
Regular price
Sale price
£15.49
ex VAT£18.59
inc. VAT
Equivalent to: HMK6525
In stock
Price Break
10+
£13.79
19+
£13.01
29+
£12.86
39+
£12.70
49+
£12.55
74+
£12.39
99+
£11.62
199+
£11.46
249+
£11.31
499+
£11.15
999+
£10.84
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6525
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 77mm
- Width:
- 25mm
Technical
Technical
| Fw | 65mm |
|---|---|
| D | 77mm |
| C | 25mm |
| Dynamic load | 56500 N |
| Static load | 116000 N |
| Inner race | IRT5525 |
| Weight | 158 g |
