SKU: TA.6212.Z

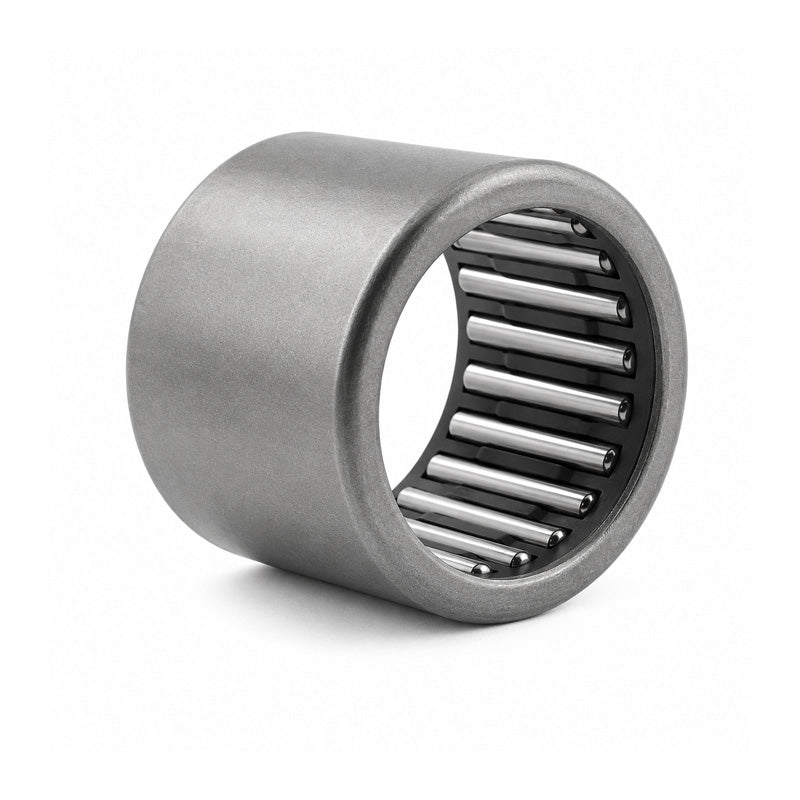

IKO TA6212Z Needle Roller Bearing Open End Type 62x74x12mm
IKO TA6212Z Needle Roller Bearing Open End Type 62x74x12mm
Regular price
£13.51
ex VAT£16.21inc. VAT
Regular price
Sale price
£13.51
ex VAT£16.21
inc. VAT
Equivalent to: HMK6212
In stock
Price Break
10+
£12.02
19+
£11.35
29+
£11.21
39+
£11.08
49+
£10.94
74+
£10.81
99+
£10.13
199+
£10.00
249+
£9.86
499+
£9.73
999+
£9.46
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6212
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 62mm
- Outside Diameter:
- 74mm
- Width:
- 12mm
Technical
Technical
| Fw | 62mm |
|---|---|
| D | 74mm |
| C | 12mm |
| Dynamic load | 20100 N |
| Static load | 30300 N |
| Inner race | IRT5212 |
| Weight | 280 g |
