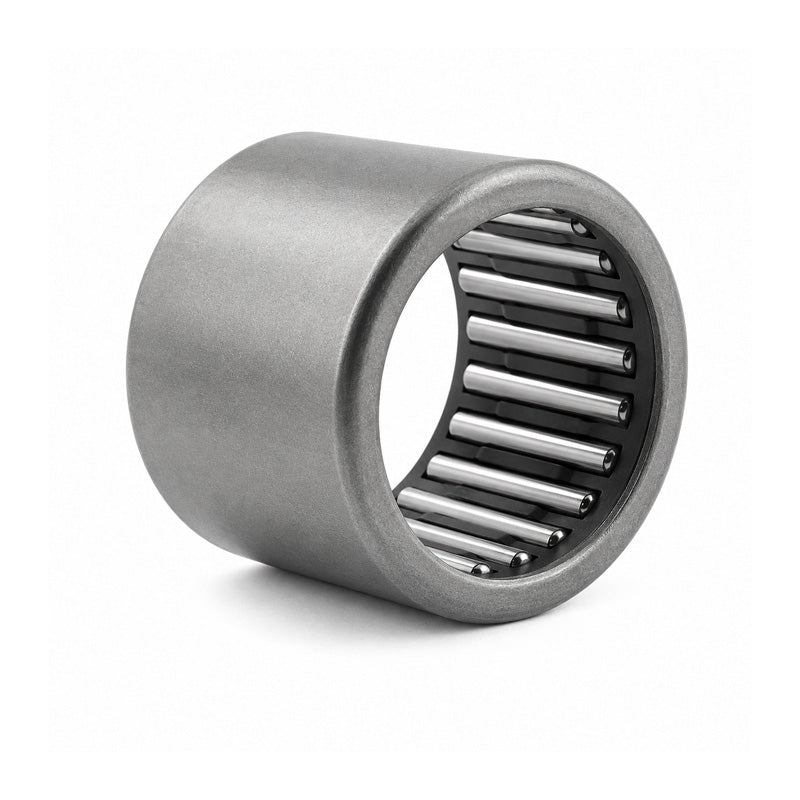

IKO TA6040Z Needle Roller Bearing Open End Type 60x72x40mm
IKO TA6040Z Needle Roller Bearing Open End Type 60x72x40mm
Regular price
£18.81
ex VAT£22.57inc. VAT
Regular price
Sale price
£18.81
ex VAT£22.57
inc. VAT
Equivalent to: HMK6040
In stock
Price Break
10+
£16.74
19+
£15.80
29+
£15.61
39+
£15.42
49+
£15.24
74+
£15.05
99+
£14.11
199+
£13.92
249+
£13.73
499+
£13.54
999+
£13.17
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6040
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 40mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 40mm |
| Dynamic load | 85700 N |
| Static load | 193000 N |
| Inner race | IRT5040 |
| Weight | 250 g |
