SKU: TA.6030.Z

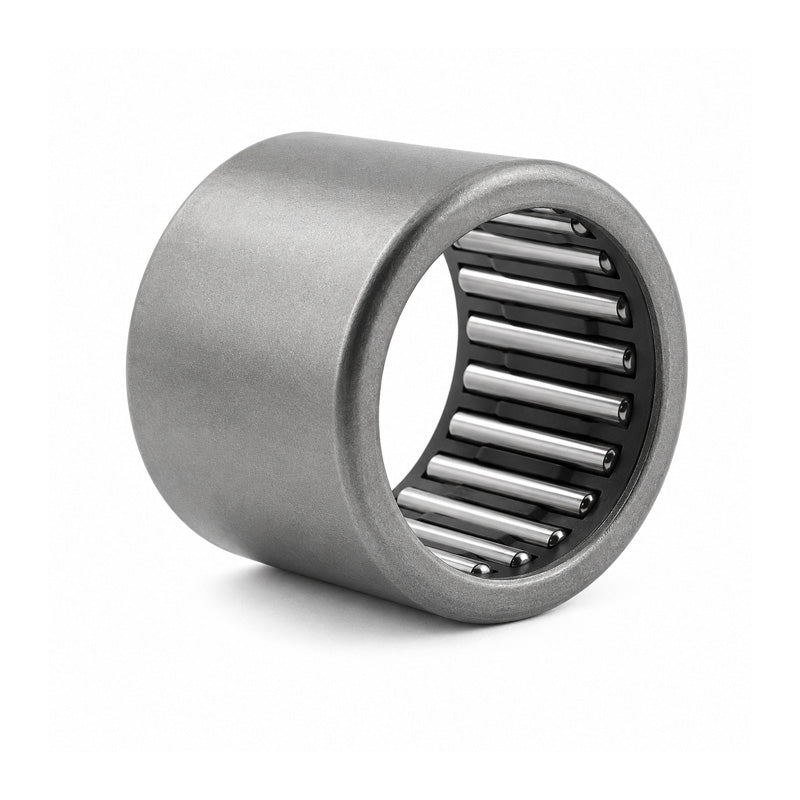

IKO TA6030Z Needle Roller Bearing Open End Type 60x72x30mm
IKO TA6030Z Needle Roller Bearing Open End Type 60x72x30mm
Regular price
£14.57
ex VAT£17.48inc. VAT
Regular price
Sale price
£14.57
ex VAT£17.48
inc. VAT
Equivalent to: HMK6030
In stock
Price Break
10+
£12.97
19+
£12.24
29+
£12.09
39+
£11.95
49+
£11.80
74+
£11.66
99+
£10.93
199+
£10.78
249+
£10.64
499+
£10.49
999+
£10.20
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6030
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 30mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 30mm |
| Dynamic load | 66300 N |
| Static load | 139000 N |
| Inner race | IRT5030 |
| Weight | 230 g |
