SKU: TA.3520.Z

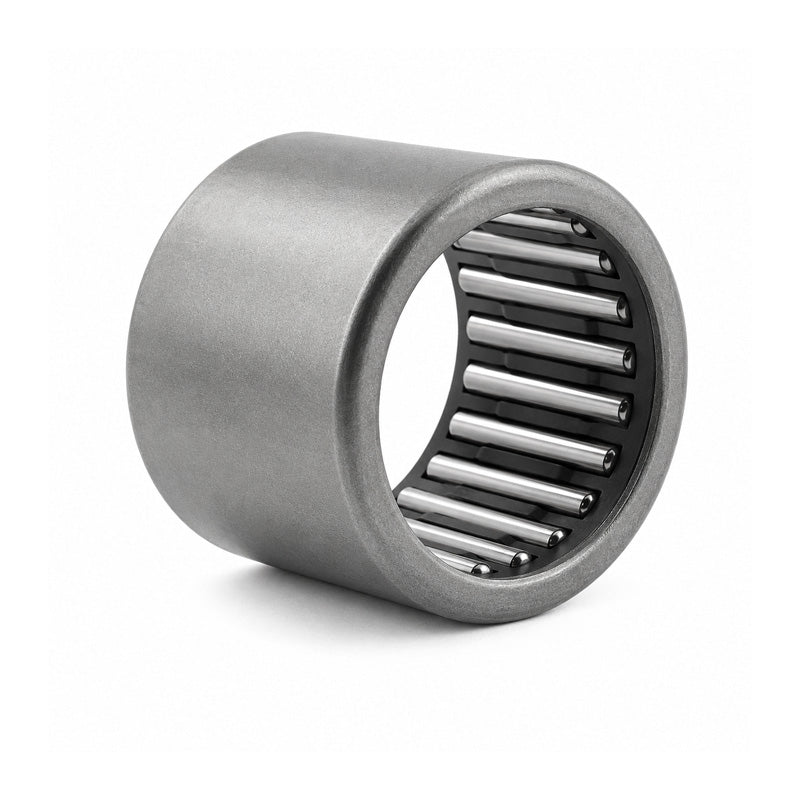

IKO TA3520Z Needle Roller Bearing Open End Type 35x45x20mm
IKO TA3520Z Needle Roller Bearing Open End Type 35x45x20mm
Regular price
£25.70
ex VAT£30.84inc. VAT
Regular price
Sale price
£25.70
ex VAT£30.84
inc. VAT
Equivalent to: HMK3520
In stock
Price Break
10+
£22.87
19+
£21.59
29+
£21.33
39+
£21.07
49+
£20.82
74+
£20.56
99+
£19.28
199+
£19.02
249+
£18.76
499+
£18.50
999+
£17.99
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3520
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 20mm |
| Dynamic load | 27000 N |
| Static load | 43100 N |
| Inner race | IRT3020 |
| Weight | 62.5 g |
