SKU: TA.3020.Z

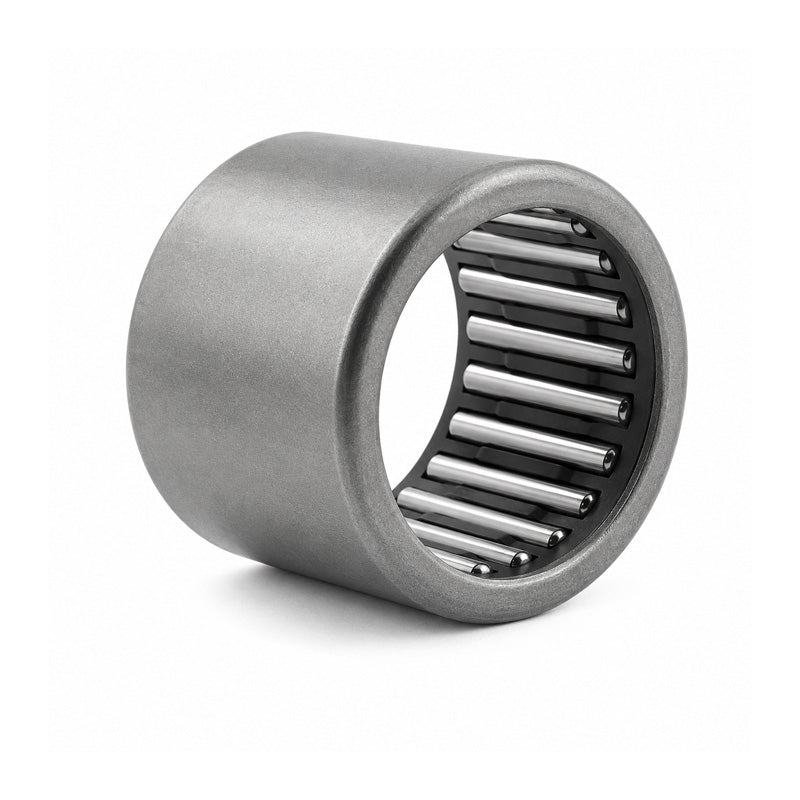

IKO TA3020Z Needle Roller Bearing Open End Type 30x40x20mm
IKO TA3020Z Needle Roller Bearing Open End Type 30x40x20mm
Regular price
£8.79
ex VAT£10.55inc. VAT
Regular price
Sale price
£8.79
ex VAT£10.55
inc. VAT
Equivalent to: HMK3020
In stock
Price Break
10+
£7.82
19+
£7.38
29+
£7.30
39+
£7.21
49+
£7.12
74+
£7.03
99+
£6.59
199+
£6.50
249+
£6.42
499+
£6.33
999+
£6.15
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3020
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Width:
- 20mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 40mm |
| C | 20mm |
| Dynamic load | 24500 N |
| Static load | 36300 N |
| Inner race | IRT2520-1 |
| Weight | 54.5 g |
