SKU: TA.2930.Z

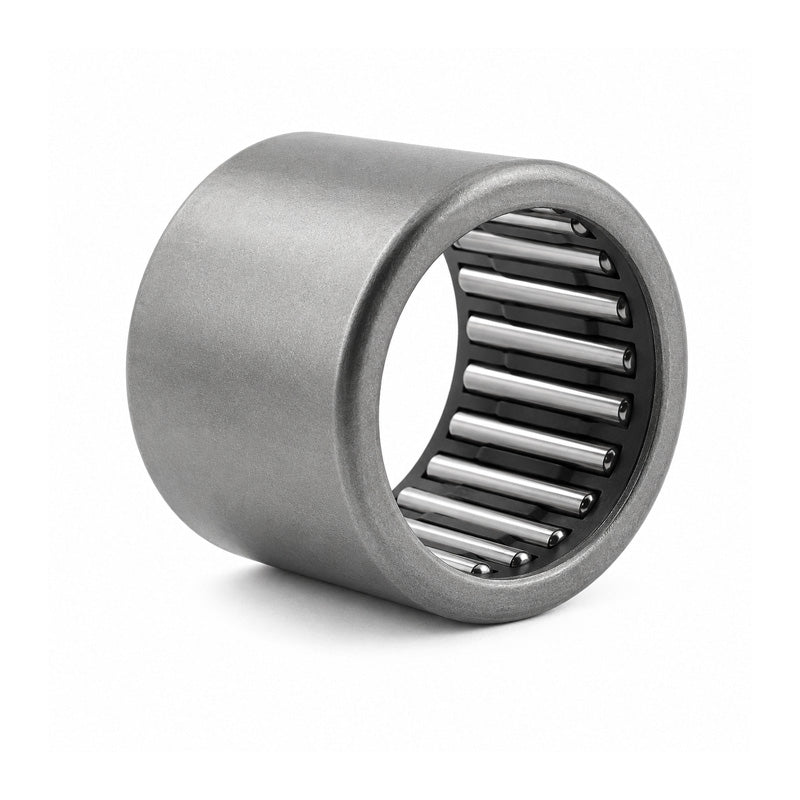

IKO TA2930Z Needle Roller Bearing Open End Type 29x38x30mm
IKO TA2930Z Needle Roller Bearing Open End Type 29x38x30mm
Regular price
£6.75
ex VAT£8.10inc. VAT
Regular price
Sale price
£6.75
ex VAT£8.10
inc. VAT
Equivalent to: HMK2930
In stock
Price Break
10+
£6.01
19+
£5.67
29+
£5.60
39+
£5.54
49+
£5.47
74+
£5.40
99+
£5.06
199+
£5.00
249+
£4.93
499+
£4.86
999+
£4.73
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2930
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 29mm
- Outside Diameter:
- 38mm
- Width:
- 30mm
Technical
Technical
| Fw | 29mm |
|---|---|
| D | 38mm |
| C | 30mm |
| Dynamic load | 34200 N |
| Static load | 60300 N |
| Inner race | IRT2530 |
| Weight | 70 g |
