SKU: TA.2830.Z

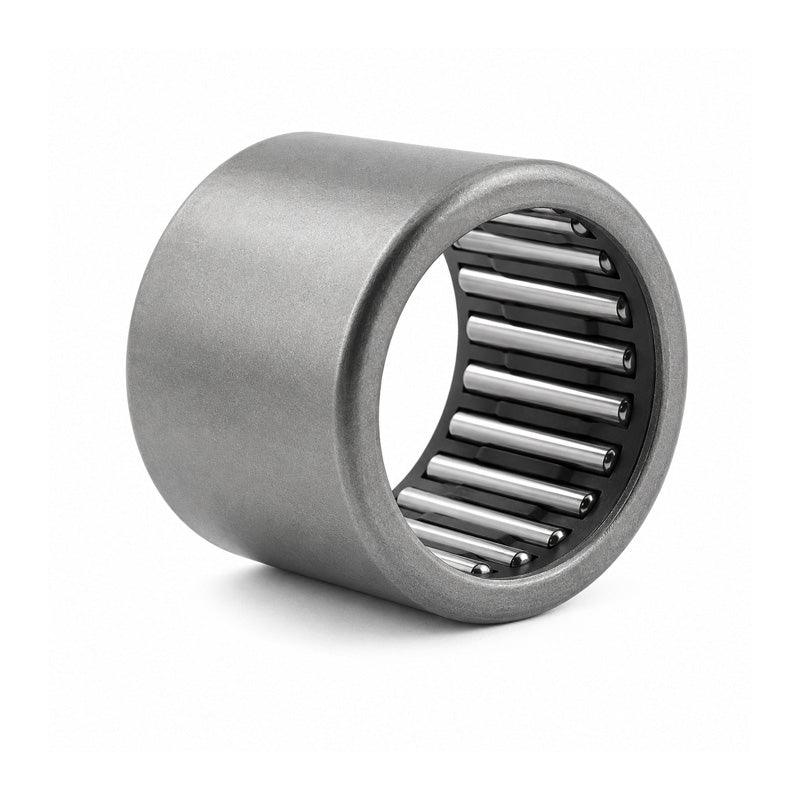

IKO TA2830Z Needle Roller Bearing Open End Type 28x37x30mm
IKO TA2830Z Needle Roller Bearing Open End Type 28x37x30mm
Regular price
£8.41
ex VAT£10.09inc. VAT
Regular price
Sale price
£8.41
ex VAT£10.09
inc. VAT
Equivalent to: HMK2830
In stock
Price Break
10+
£7.48
19+
£7.06
29+
£6.98
39+
£6.90
49+
£6.81
74+
£6.73
99+
£6.31
199+
£6.22
249+
£6.14
499+
£6.06
999+
£5.89
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2830
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Dynamic load | 33000 N |
| Static load | 56900 N |
| Inner race | IRT2230-1 |
| Weight | 67.5 g |
