SKU: TA.2520.Z

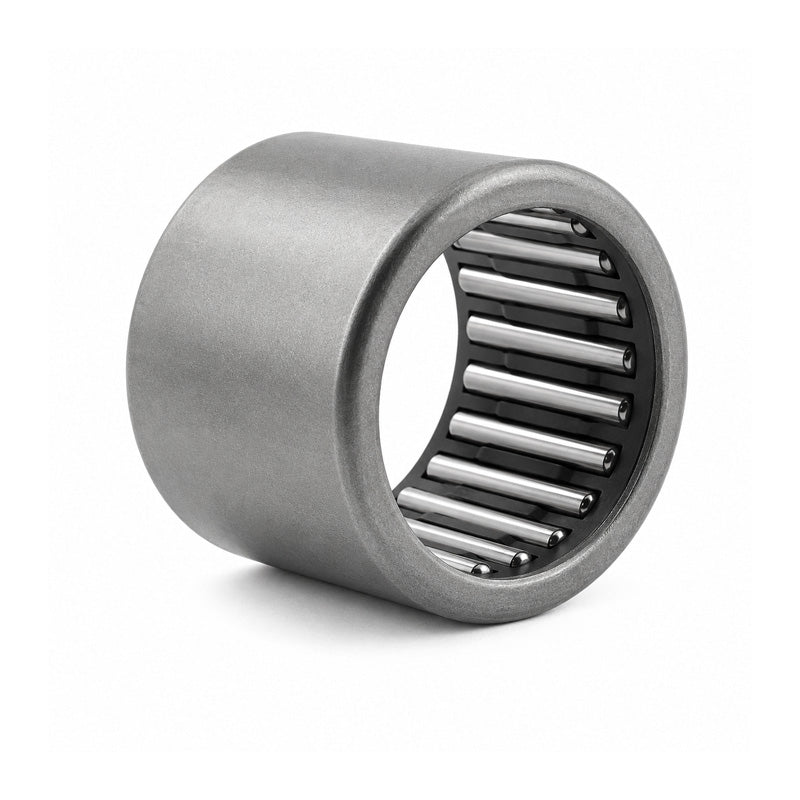

IKO TA2520Z Needle Roller Bearing Open End Type 25x33x20mm
IKO TA2520Z Needle Roller Bearing Open End Type 25x33x20mm
Regular price
£8.09
ex VAT£9.71inc. VAT
Regular price
Sale price
£8.09
ex VAT£9.71
inc. VAT
Equivalent to: HMK2520
In stock
Price Break
10+
£7.20
19+
£6.80
29+
£6.71
39+
£6.63
49+
£6.55
74+
£6.47
99+
£6.07
199+
£5.99
249+
£5.91
499+
£5.82
999+
£5.66
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2520
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 33mm
- Width:
- 20mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 33mm |
| C | 20mm |
| Dynamic load | 19500 N |
| Static load | 31100 N |
| Inner race | IRT2020-1 |
| Weight | 36.5 g |
