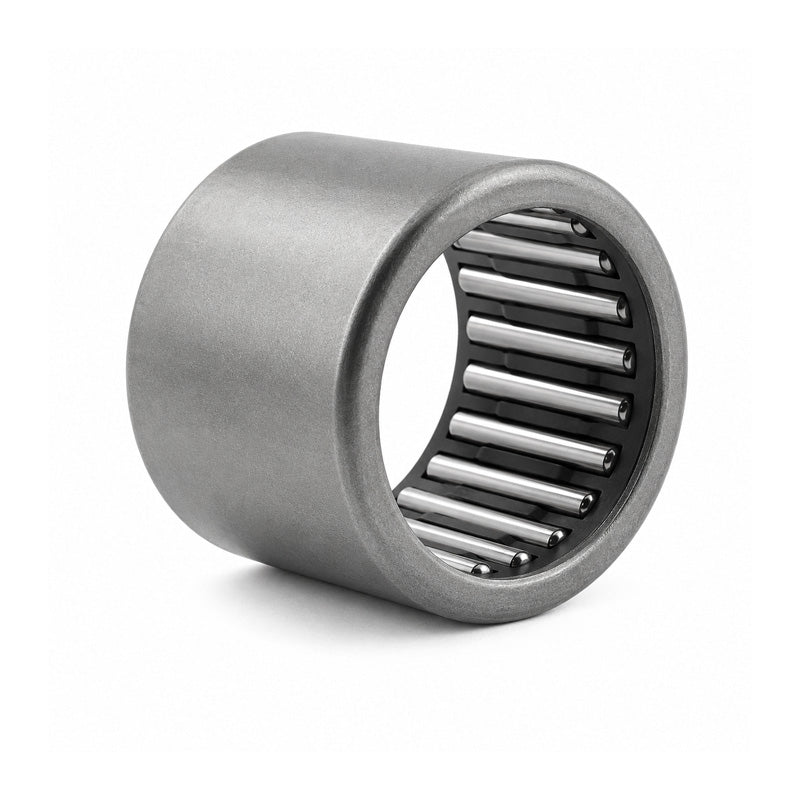

IKO TA223016Z Needle Roller Bearing Open End Type 22x30x16mm
IKO TA223016Z Needle Roller Bearing Open End Type 22x30x16mm
Regular price
£6.38
ex VAT£7.66inc. VAT
Regular price
Sale price
£6.38
ex VAT£7.66
inc. VAT
Equivalent to: HMK223016
In stock
Price Break
10+
£5.68
19+
£5.36
29+
£5.30
39+
£5.23
49+
£5.17
74+
£5.10
99+
£4.79
199+
£4.72
249+
£4.66
499+
£4.59
999+
£4.47
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK223016
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 16mm |
| Dynamic load | 13200 N |
| Static load | 18200 N |
| Inner race | IRT1716-2 |
| Weight | 26 g |
