SKU: TA.2015.Z-EU

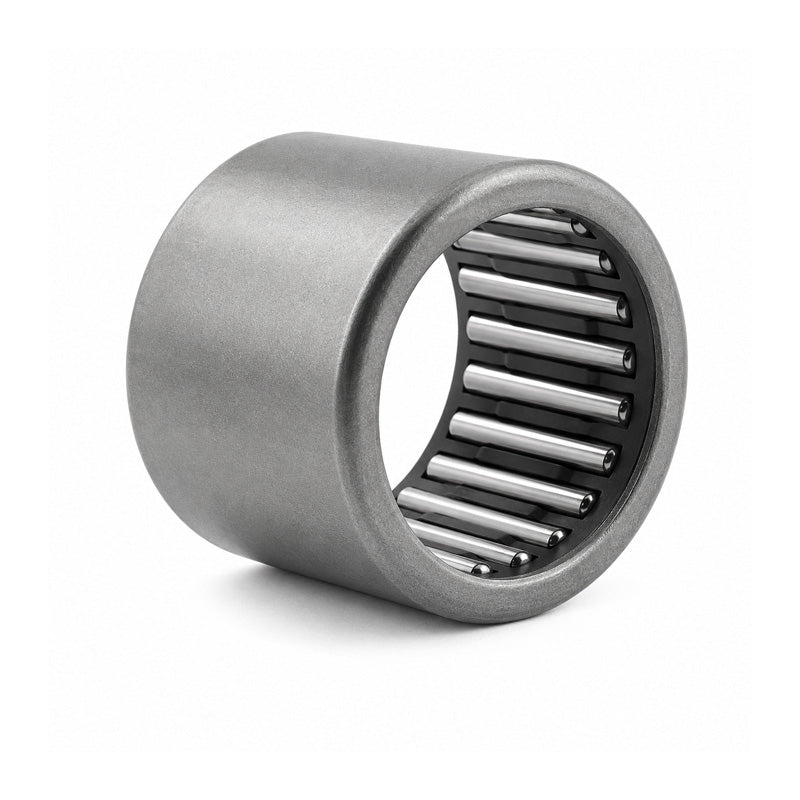

Premier Budget TA2015Z Needle Roller Bearing Open End Type 20x27x15mm
Premier Budget TA2015Z Needle Roller Bearing Open End Type 20x27x15mm
Regular price
£8.01
ex VAT£9.61inc. VAT
Regular price
Sale price
£8.01
ex VAT£9.61
inc. VAT
Equivalent to: HMK2015
In stock
Price Break
10+
£7.13
19+
£6.73
29+
£6.65
39+
£6.57
49+
£6.49
74+
£6.41
99+
£6.01
199+
£5.93
249+
£5.85
499+
£5.77
999+
£5.61
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK2015
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 27mm
- Width:
- 15mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 27mm |
| C | 15mm |
| Dynamic load | 10400N |
| Static load | 14600N |
| Inner race | IRT1515-2 |
| Weight | 20g |
