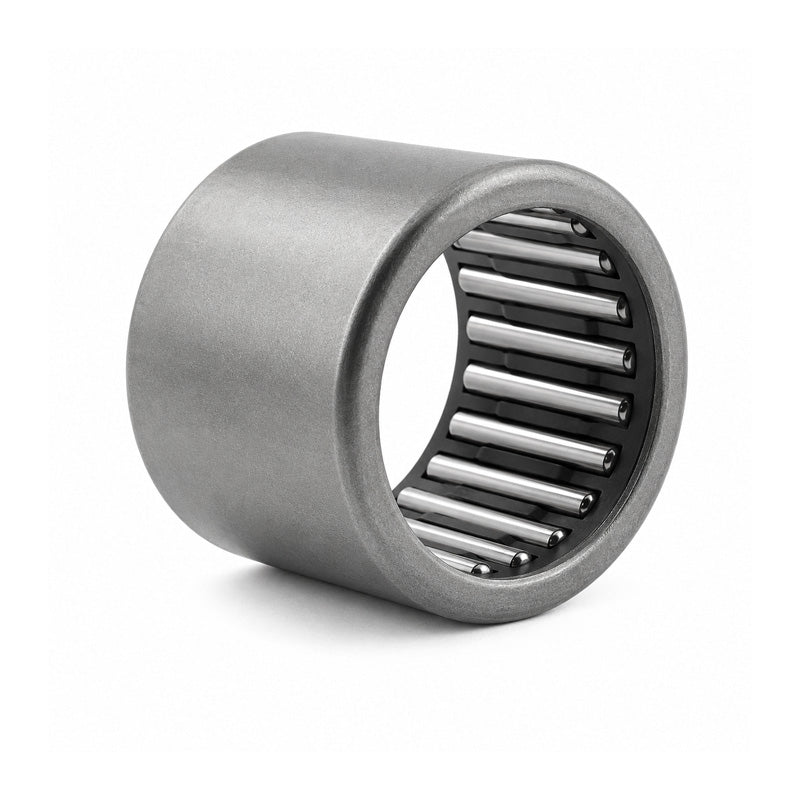

IKO TA1620Z Needle Roller Bearing Open End Type 16x24x20mm
IKO TA1620Z Needle Roller Bearing Open End Type 16x24x20mm
Regular price
£11.42
ex VAT£13.70inc. VAT
Regular price
Sale price
£11.42
ex VAT£13.70
inc. VAT
Equivalent to: HMK1620
In stock
Price Break
10+
£10.16
19+
£9.59
29+
£9.48
39+
£9.36
49+
£9.25
74+
£9.14
99+
£8.57
199+
£8.45
249+
£8.34
499+
£8.22
999+
£7.99
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1620
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 20mm |
| Dynamic load | 14700 N |
| Static load | 19100 N |
| Inner race | IRT1220-1 |
| Weight | 25 g |
