SKU: TA.1212.Z
IKO TA1212Z Needle Roller Bearing Open End Type 12x19x12mm
IKO TA1212Z Needle Roller Bearing Open End Type 12x19x12mm
Regular price
£11.08
ex VAT£13.30inc. VAT
Regular price
Sale price
£11.08
ex VAT£13.30
inc. VAT
Equivalent to: HMK1212
In stock
Price Break
10+
£9.86
19+
£9.31
29+
£9.20
39+
£9.09
49+
£8.97
74+
£8.86
99+
£8.31
199+
£8.20
249+
£8.09
499+
£7.98
999+
£7.76
Couldn't load pickup availability
Description
Description

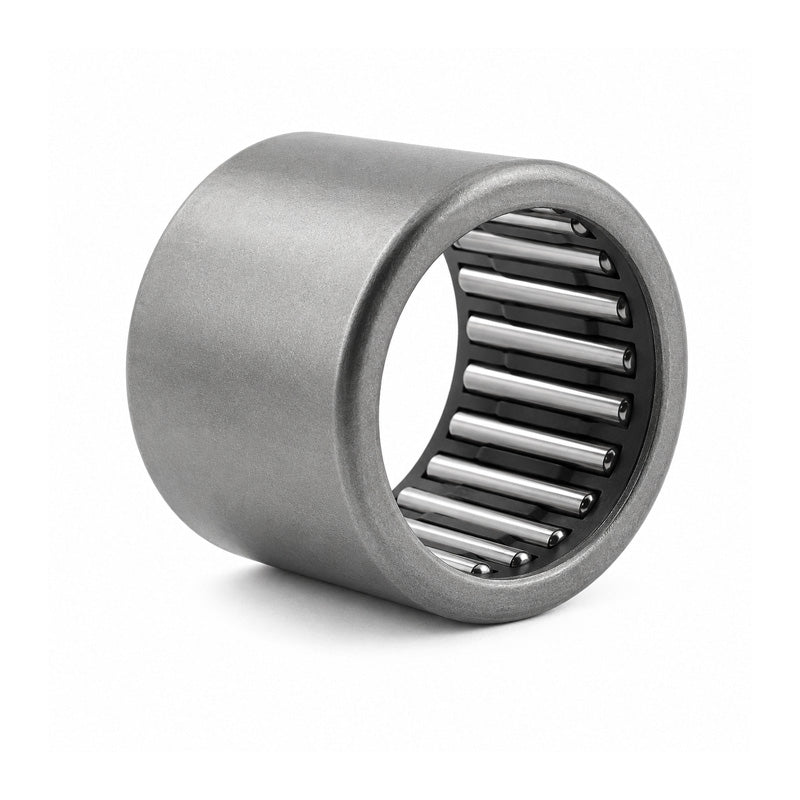

IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1212
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Width:
- 12mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| C | 12mm |
| Dynamic load | 6000 N |
| Static load | 6310 N |
| Inner race | IRT812 |
| Weight | 10.5 g |
