SKU: TA.1012.Z-EU

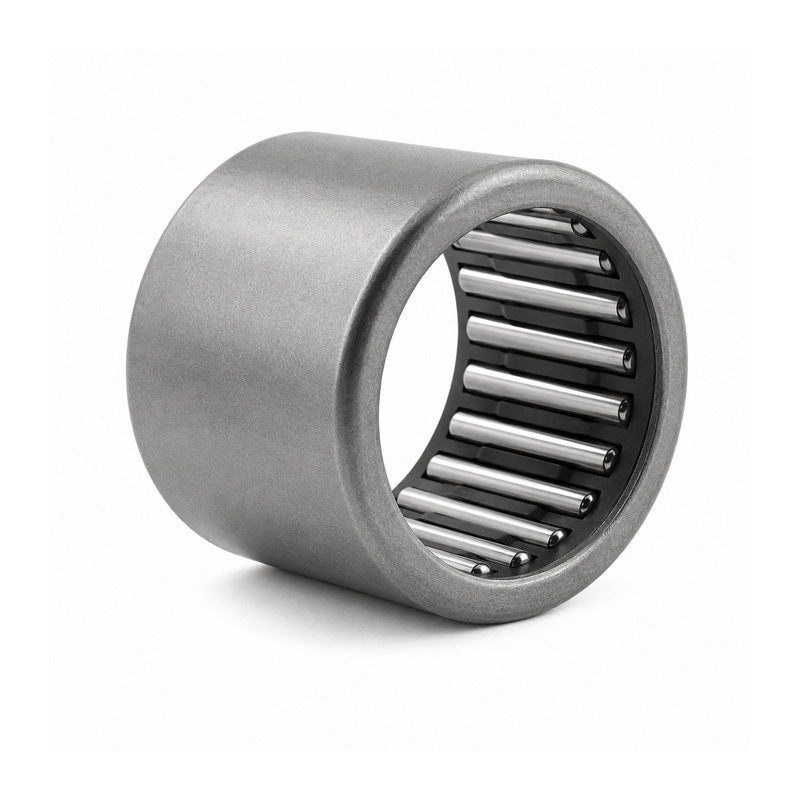

Premier Budget TA1012Z Needle Roller Bearing Open End Type 10x17x12mm
Premier Budget TA1012Z Needle Roller Bearing Open End Type 10x17x12mm
Regular price
£7.70
ex VAT£9.24inc. VAT
Regular price
Sale price
£7.70
ex VAT£9.24
inc. VAT
Equivalent to: HMK1012
In stock
Price Break
10+
£6.85
19+
£6.47
29+
£6.39
39+
£6.31
49+
£6.24
74+
£6.16
99+
£5.78
199+
£5.70
249+
£5.62
499+
£5.54
999+
£5.39
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1012
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 12mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 12mm |
| Dynamic load | 5590N |
| Static load | 5540N |
| Inner race | IRT712 |
| Weight | 9.3g |
