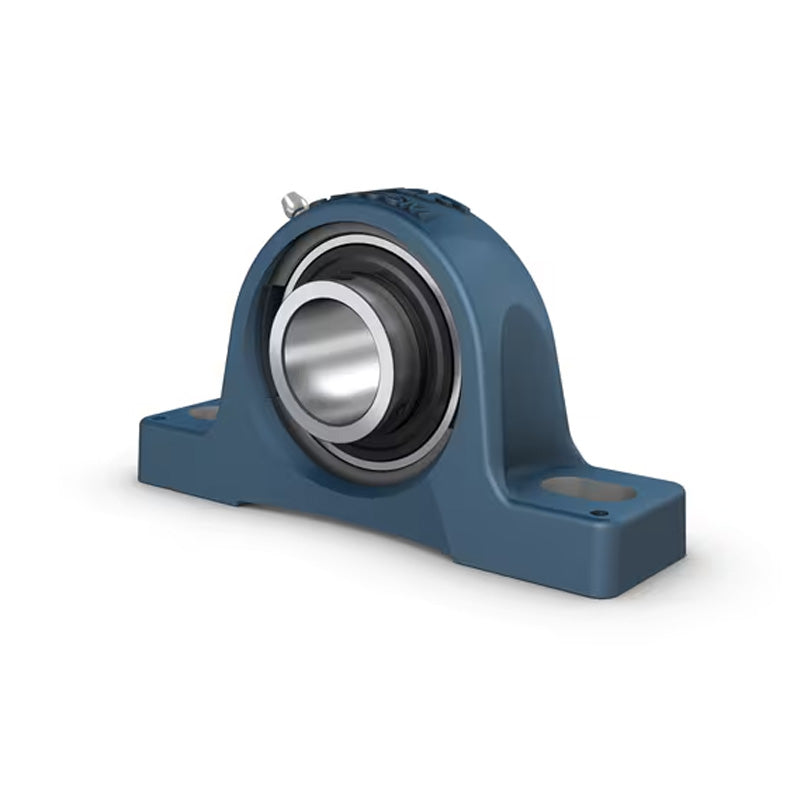

SKF SYJ30TF Cast Iron Plummer Block with Grub Screw Insert 30mm Bore
SKF SYJ30TF Cast Iron Plummer Block with Grub Screw Insert 30mm Bore
Regular price
£45.45
ex VAT£54.54inc. VAT
Regular price
Sale price
£45.45
ex VAT£54.54
inc. VAT
In stock
Price Break
10+
£40.45
20+
£38.17
30+
£37.72
40+
£37.27
50+
£36.81
75+
£36.36
100+
£34.08
200+
£33.63
250+
£33.18
500+
£32.72
1000+
£31.81
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- SYJ
- Bolt Hole Centres:
- 118mm
Technical
Technical
| d | 30mm |
|---|---|
| A | 42mm |
| A1 | 27mm |
| B | 38.1mm |
| H | 82.5mm |
| H1 | 42.9mm |
| H2 | 16mm |
| J | 118mm |
| L | 165mm |
| N | 24mm |
| N1 | 17mm |
| G | 14mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.05 kg |
| Housing | SYJ506 |
| Insert | YAR206-2F |
