SKU: SY45TF/VA228-SKF

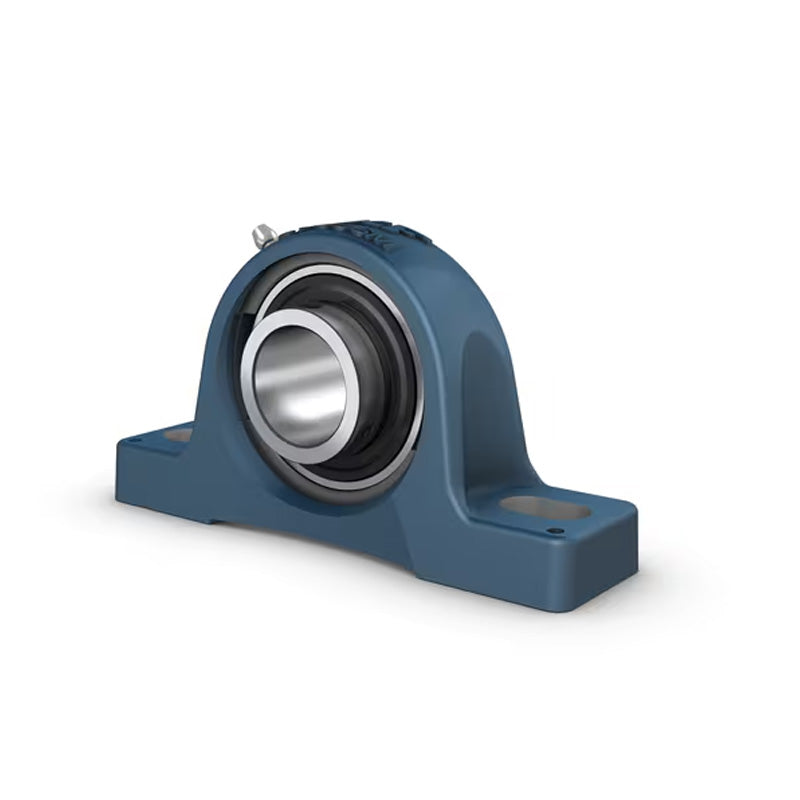

SKF SY45TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 45mm
SKF SY45TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 45mm
Regular price
£325.31
ex VAT£390.37inc. VAT
Regular price
Sale price
£325.31
ex VAT£390.37
inc. VAT
In stock
Price Break
10+
£289.53
19+
£273.26
29+
£270.01
39+
£266.75
49+
£263.50
74+
£260.25
99+
£243.98
199+
£240.73
249+
£237.48
499+
£234.22
999+
£227.72
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 107mm |
| H1 | 54mm |
| H2 | 20.6mm |
| J | 143.5mm |
| L | 187mm |
| N | 22.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.3 kg |
