SKU: SY35TF/VA201-SKF

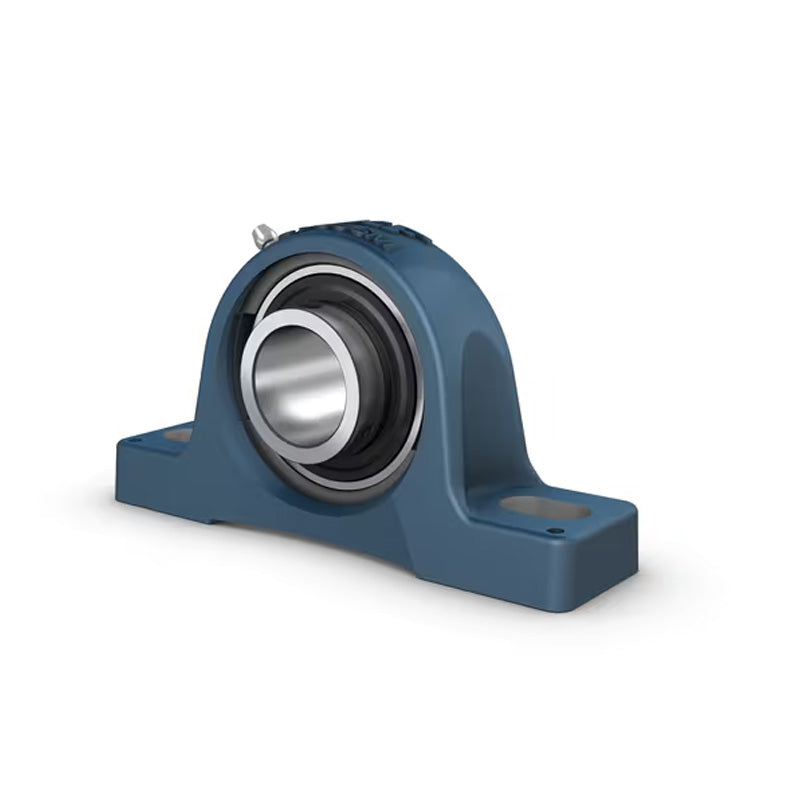

SKF SY35TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 35mm
SKF SY35TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 35mm
Regular price
£225.23
ex VAT£270.28inc. VAT
Regular price
Sale price
£225.23
ex VAT£270.28
inc. VAT
In stock
Price Break
10+
£200.45
19+
£189.19
29+
£186.94
39+
£184.69
49+
£182.44
74+
£180.18
99+
£168.92
199+
£166.67
249+
£164.42
499+
£162.17
999+
£157.66
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 35mm |
|---|---|
| A | 45mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 25.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.46 kg |
