SKU: SY20TF/VA201-SKF

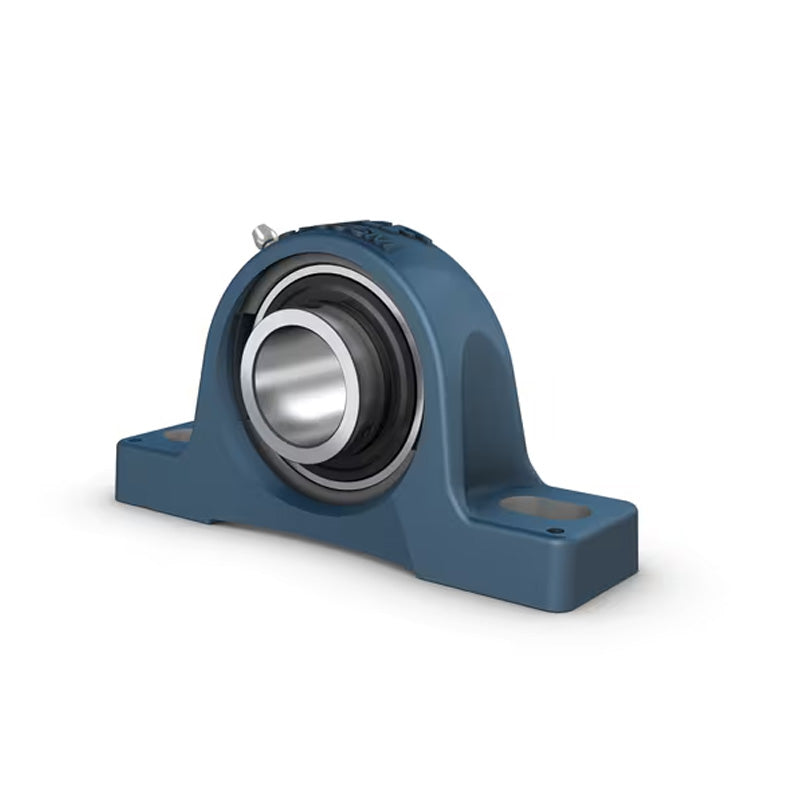

SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm
SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm
Regular price
£132.26
ex VAT£158.71inc. VAT
Regular price
Sale price
£132.26
ex VAT£158.71
inc. VAT
In stock
Price Break
10+
£117.71
19+
£111.10
29+
£109.78
39+
£108.45
49+
£107.13
74+
£105.81
99+
£99.20
199+
£97.87
249+
£96.55
499+
£95.23
999+
£92.58
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| B | 31mm |
| H | 64mm |
| H1 | 33.3mm |
| H2 | 14mm |
| J | 97mm |
| L | 127mm |
| N | 20.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 18.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.57 kg |
