SKU: SY2.3/16TF/VA228-SKF

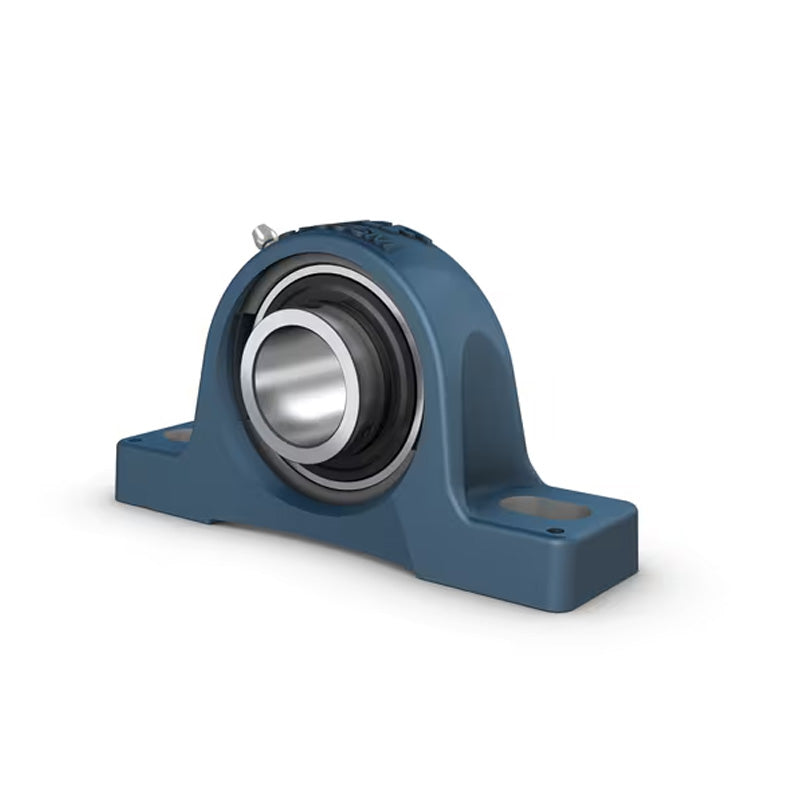

SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch
SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch
Regular price
£359.36
ex VAT£431.23inc. VAT
Regular price
Sale price
£359.36
ex VAT£431.23
inc. VAT
In stock
Price Break
10+
£319.83
19+
£301.86
29+
£298.27
39+
£294.68
49+
£291.08
74+
£287.49
99+
£269.52
199+
£265.93
249+
£262.33
499+
£258.74
999+
£251.55
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| A | 60mm |
| B | 55.6mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 33.4mm |
| Dynamic load C | 25 kN |
| Static load Co | 29 kN |
| Weight | 3.7 kg |
