• SW47 Snap Ring to Suit 47mm Shaft
1 1

SKU: SW47-M2400

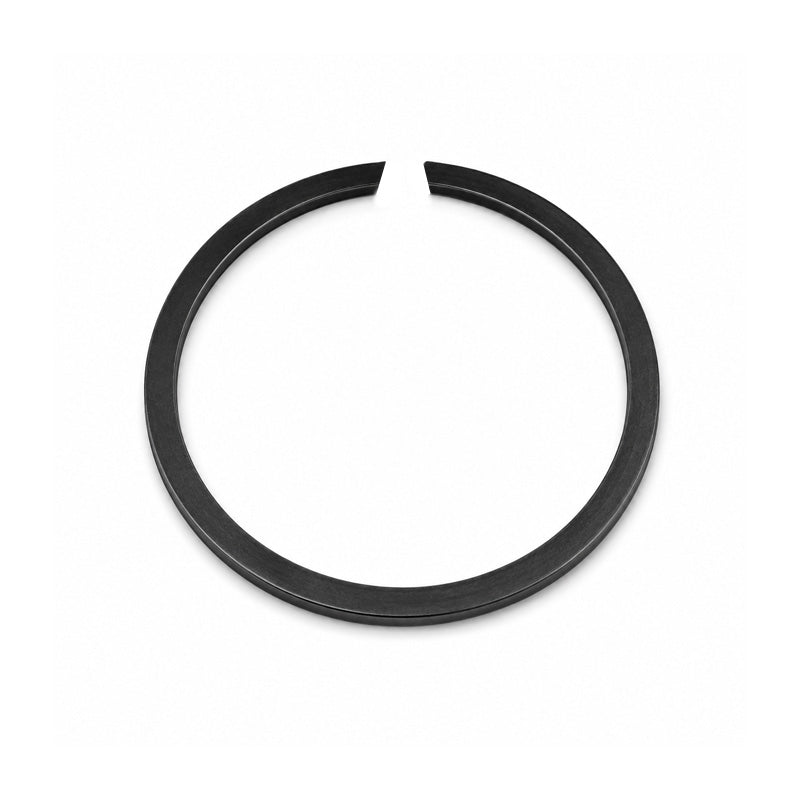

SW47 Snap Ring to Suit 47mm Shaft

SW47 Snap Ring to Suit 47mm Shaft
£3.10 ex VAT£3.72inc. VAT
£3.10 ex VAT£3.72 inc. VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS47 CFS-47 2400-47 SW47 SW-47 M2400-47

In stock

Price Break
5+ £2.17
10+ £1.86
20+ £1.71
50+ £1.55
100+ £1.24
500+ £1.09
1000+ £0.93
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS47 CFS-47 2400-47 SW47 SW-47 M2400-47
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
44.8mm
Shaft Size:
47mm
Technical
d1 47mm
s 1.5mm (Tolerance -0.1)
b 2.3mm (Tolerance -0.1)
d3 max. 44.8mm
d2 45.5mm (Tolerance - 0.16)
m min. 1.6mm
FN 18.2 kN
FR 19.2 kN
n det x1000 6 rpm
