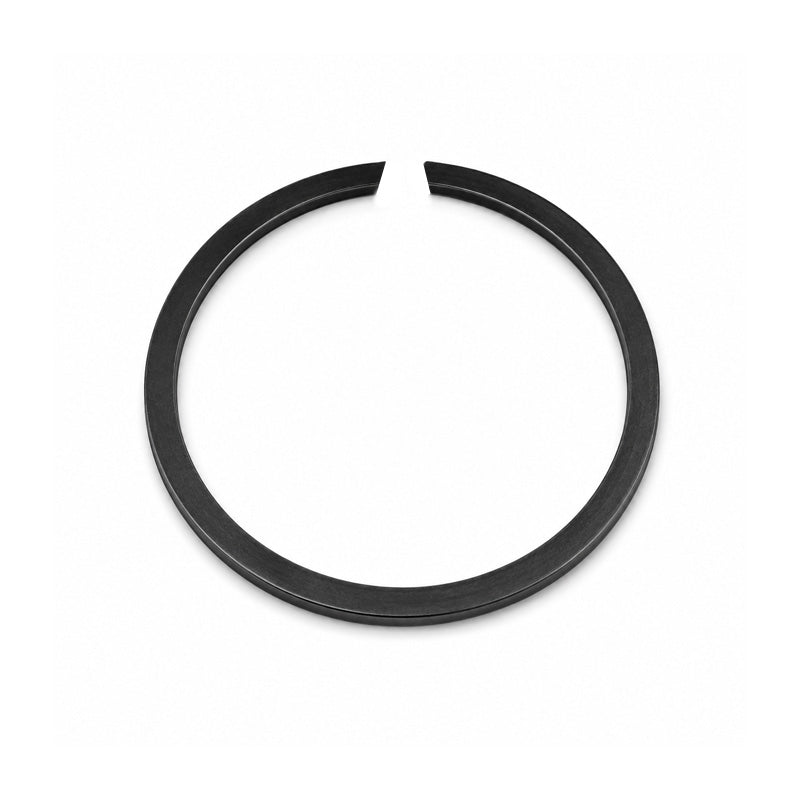

• SW115 Snap Ring to Suit 115mm Shaft
1 1

SKU: SW115-M2400

SW115 Snap Ring to Suit 115mm Shaft

SW115 Snap Ring to Suit 115mm Shaft
£1.91 ex VAT£2.29inc. VAT
£1.91 ex VAT£2.29 inc. VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS115 CFS-115 2400-115 SW115 SW-115 M2400-115

In stock

Price Break
5+ £1.34
10+ £1.15
20+ £1.05
50+ £0.96
100+ £0.76
500+ £0.67
1000+ £0.57
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS115 CFS-115 2400-115 SW115 SW-115 M2400-115
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
111.6mm
Shaft Size:
115mm
Technical
d1 115mm
s 2.5mm (Tolerance -0.1)
b 3.4mm (Tolerance -0.1)
d3 max. 111.6mm
d2 112.7mm (Tolerance - 0.22)
m min. 2.7mm
FN 71 kN
FR 47.2 kN
n det x1000 1 rpm
