• SW110 Snap Ring to Suit 110mm Shaft - Allow 2-3 Days
1 1

SKU: SW110-M2400

SW110 Snap Ring to Suit 110mm Shaft - Allow 2-3 Days

SW110 Snap Ring to Suit 110mm Shaft - Allow 2-3 Days
£3.58 ex VAT£4.30inc. VAT
£3.58 ex VAT£4.30 inc. VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS110 CFS-110 2400-110 SW110 SW-110 M2400-110

In stock

Price Break
2+ £2.51
10+ £2.15
15+ £1.97
30+ £1.79
49+ £1.43
74+ £1.25
99+ £1.07
199+ £0.00
249+ £0.00
499+ £0.00
999+ £0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

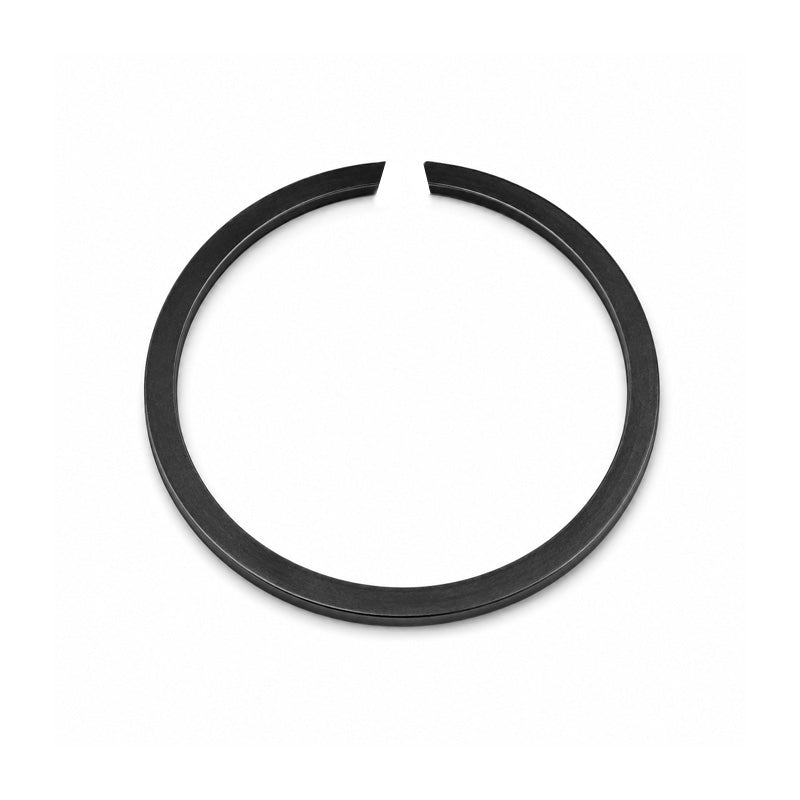

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS110 CFS-110 2400-110 SW110 SW-110 M2400-110
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
106.6mm
Shaft Size:
110mm
Technical
d1 110mm
s 2.5mm (Tolerance -0.1)
b 3.4mm (Tolerance -0.1)
d3 max. 106.6mm
d2 107.7mm (Tolerance - 0.22)
m min. 2.7mm
FN 69 kN
FR 50.4 kN
n det x1000 1 rpm
