• SW105 Snap Ring to Suit 105mm Shaft - Allow 2-3 Days
1 1

SKU: SW105-M2400

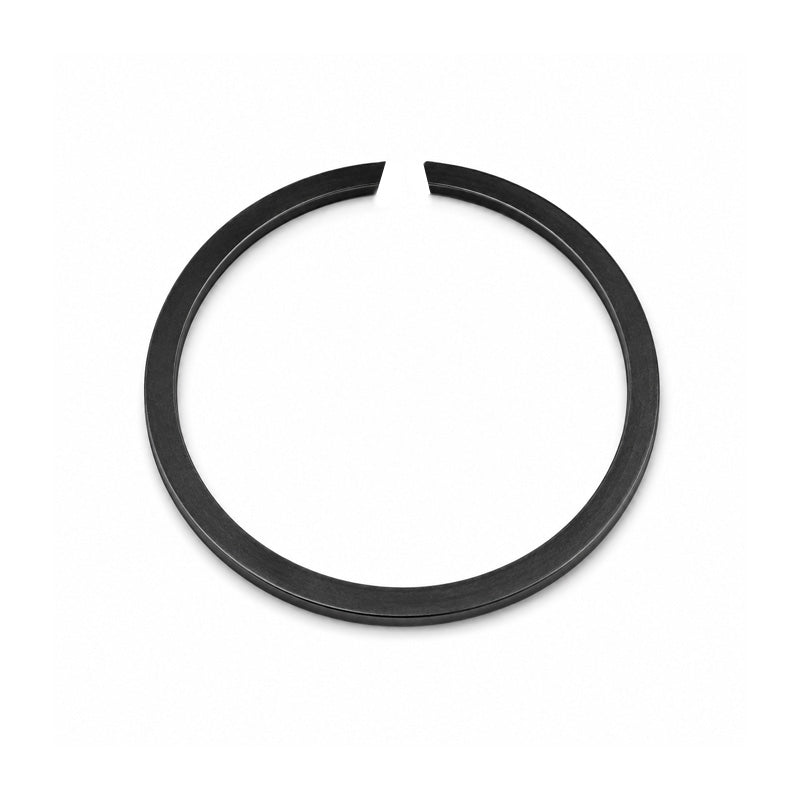

SW105 Snap Ring to Suit 105mm Shaft - Allow 2-3 Days

SW105 Snap Ring to Suit 105mm Shaft - Allow 2-3 Days
£1.19 ex VAT£1.43inc. VAT
£1.19 ex VAT£1.43 inc. VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS105 CFS-105 2400-105 SW105 SW-105 M2400-105

In stock

Price Break
2+ £0.83
10+ £0.71
15+ £0.65
30+ £0.60
49+ £0.48
74+ £0.42
99+ £0.36
199+ £0.00
249+ £0.00
499+ £0.00
999+ £0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS105 CFS-105 2400-105 SW105 SW-105 M2400-105
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
101.7mm
Shaft Size:
105mm
Technical
d1 105mm
s 2.5mm (Tolerance -0.1)
b 3.4mm (Tolerance -0.1)
d3 max. 101.7mm
d2 102.7mm (Tolerance - 0.22)
m min. 2.7mm
FN 65 kN
FR 54 kN
n det x1000 2 rpm
