SKU: SUCT.PL.208

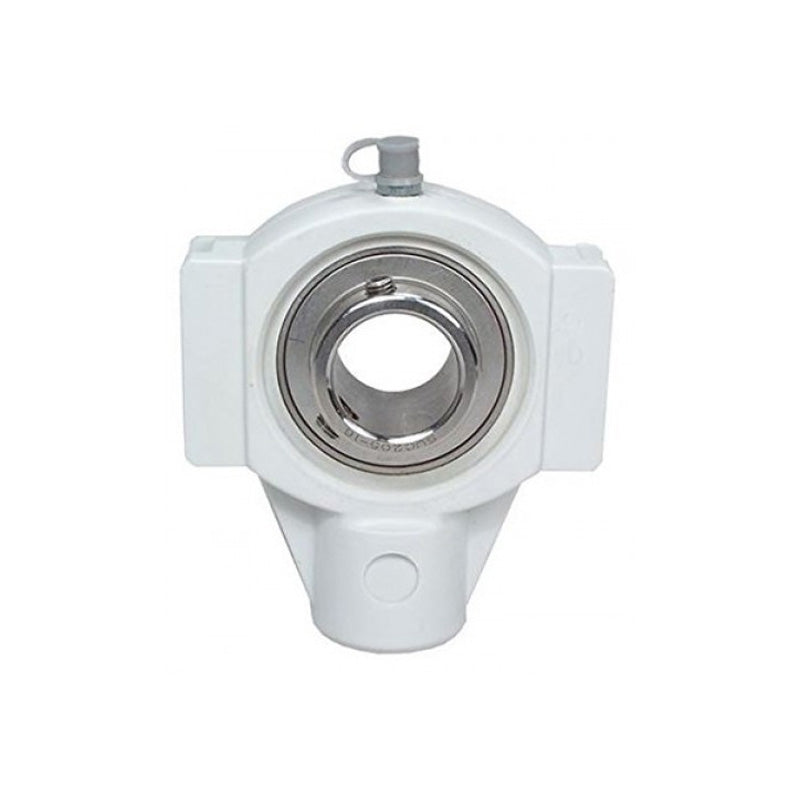

SUCTPL208 Metric Thermo Plastic Take Up Unit Housing with 40mm Bore Stainless Insert
SUCTPL208 Metric Thermo Plastic Take Up Unit Housing with 40mm Bore Stainless Insert
Regular price
£16.82
ex VAT£20.18inc. VAT
Regular price
Sale price
£16.82
ex VAT£20.18
inc. VAT
Equivalent to: PST40CR
In stock
Price Break
3+
£14.97
4+
£14.13
9+
£13.96
19+
£13.79
49+
£13.62
99+
£13.46
499+
£12.62
999+
£12.45
1999+
£12.28
2999+
£12.11
4999+
£11.77
Share this product
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PST40CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 40mm |
|---|---|
| a | 140mm |
| c | 34.5mm |
| d | 16mm |
| h | 85mm |
| m | 102mm |
| s | M16 |
| t | 40mm |
| v | 114mm |
| w | 80mm |
| B | 49.2mm |
| n | 19mm |
| Weight | 2.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 4000 rpm |
