SKU: SUCT.PL.206

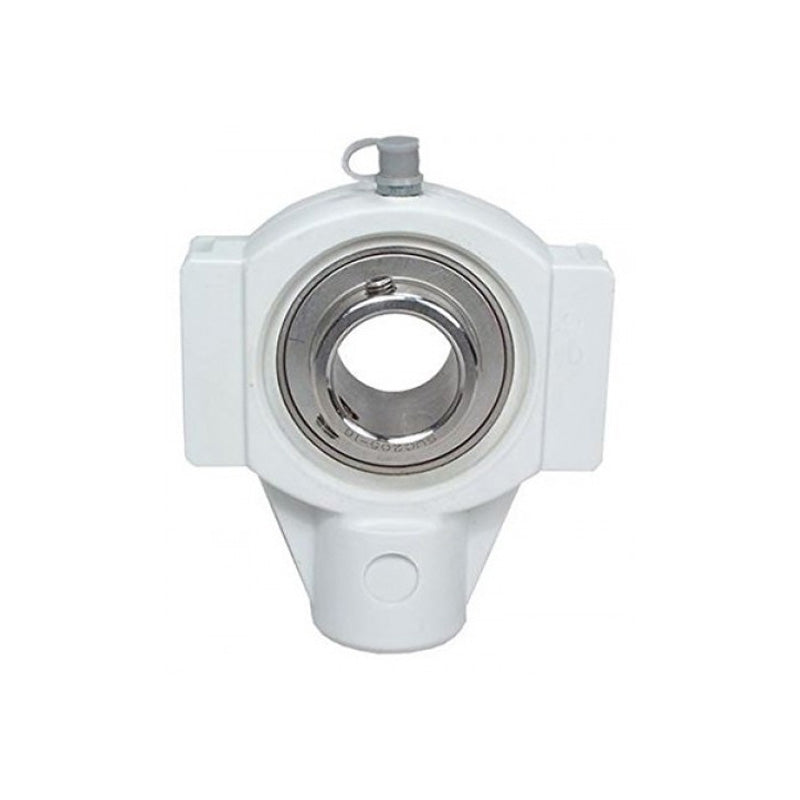

SUCTPL206 Metric Thermo Plastic Take Up Unit Housing with 30mm Bore Stainless Insert
SUCTPL206 Metric Thermo Plastic Take Up Unit Housing with 30mm Bore Stainless Insert
Regular price
£25.98
ex VAT£31.18inc. VAT
Regular price
Sale price
£25.98
ex VAT£31.18
inc. VAT
Equivalent to: PST30CR
In stock
Price Break
3+
£23.12
4+
£21.82
9+
£21.56
19+
£21.30
49+
£21.04
99+
£20.78
499+
£19.49
999+
£19.23
1999+
£18.97
2999+
£18.71
4999+
£18.19
Share this product
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PST30CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 30mm |
|---|---|
| a | 125mm |
| c | 34.5mm |
| d | 12mm |
| h | 76mm |
| m | 89mm |
| s | M16 |
| t | 40mm |
| v | 102mm |
| w | 63mm |
| B | 38.1mm |
| n | 15.9mm |
| Weight | 1.3 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 5300 rpm |
