SKU: SUCP.PL.204

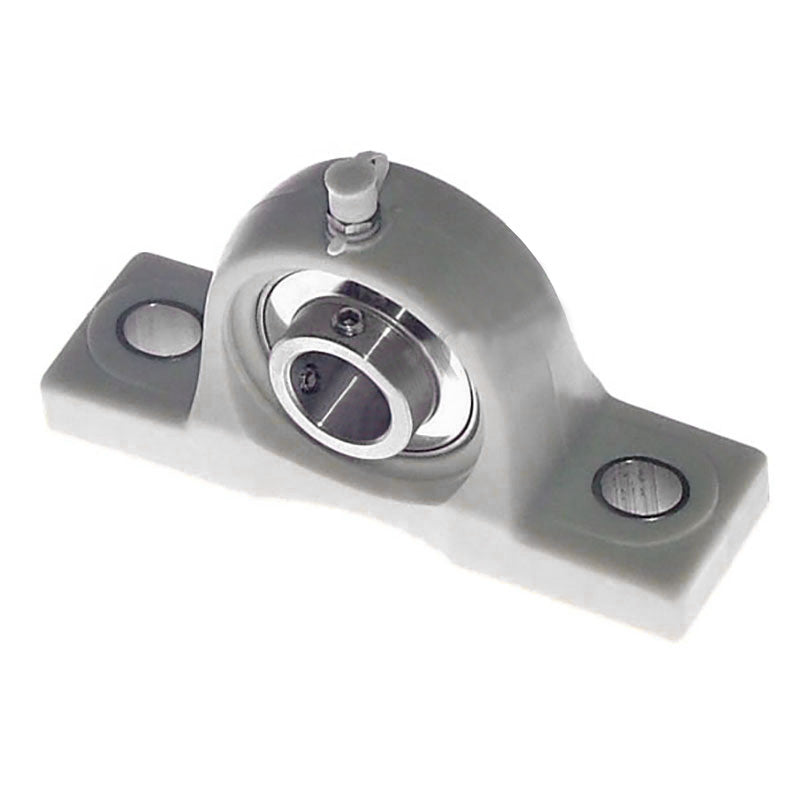

SUCPPL204 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
SUCPPL204 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
Regular price
£20.98
ex VAT£25.18inc. VAT
Regular price
Sale price
£20.98
ex VAT£25.18
inc. VAT
Equivalent to: PNP20CR
In stock
Price Break
3+
£18.67
4+
£17.62
9+
£17.41
19+
£17.20
49+
£16.99
99+
£16.78
499+
£15.74
999+
£15.53
1999+
£15.32
2999+
£15.11
4999+
£14.69
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP20CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 20mm |
|---|---|
| h | 33.3mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 7450 rpm |
