SKU: SUCF.PL.205-16

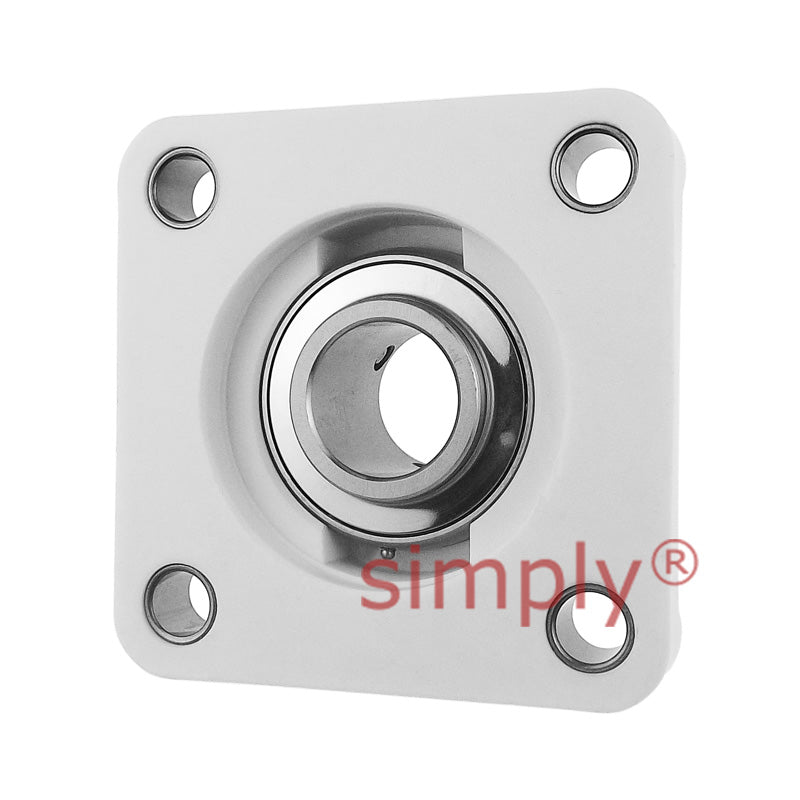

SUCFPL205-16 Metric Thermo Plastic Four Bolt Square Flange Housing with 25mm Bore Stainless Insert
SUCFPL205-16 Metric Thermo Plastic Four Bolt Square Flange Housing with 25mm Bore Stainless Insert
Regular price
£17.23
ex VAT£20.68inc. VAT
Regular price
Sale price
£17.23
ex VAT£20.68
inc. VAT
In stock
Price Break
10+
£15.33
19+
£14.47
29+
£14.30
39+
£14.13
49+
£13.96
74+
£13.78
99+
£12.92
199+
£12.75
249+
£12.58
499+
£12.41
999+
£12.06
Couldn't load pickup availability
Description
Description
SSBFPL Thermo Plastic Four Bolt Square Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 4 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 70mm

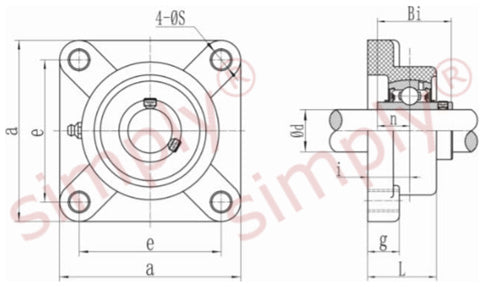

Technical
Technical
| d | 25mm |
|---|---|
| a | 95mm |
| e | 70mm |
| b | g |
| 15mm | L |
| 28mm | s |
| 11mm | i |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.15kg |
| Temperature Range | -35 to 102 deg C |
