SKU: STO35-EU

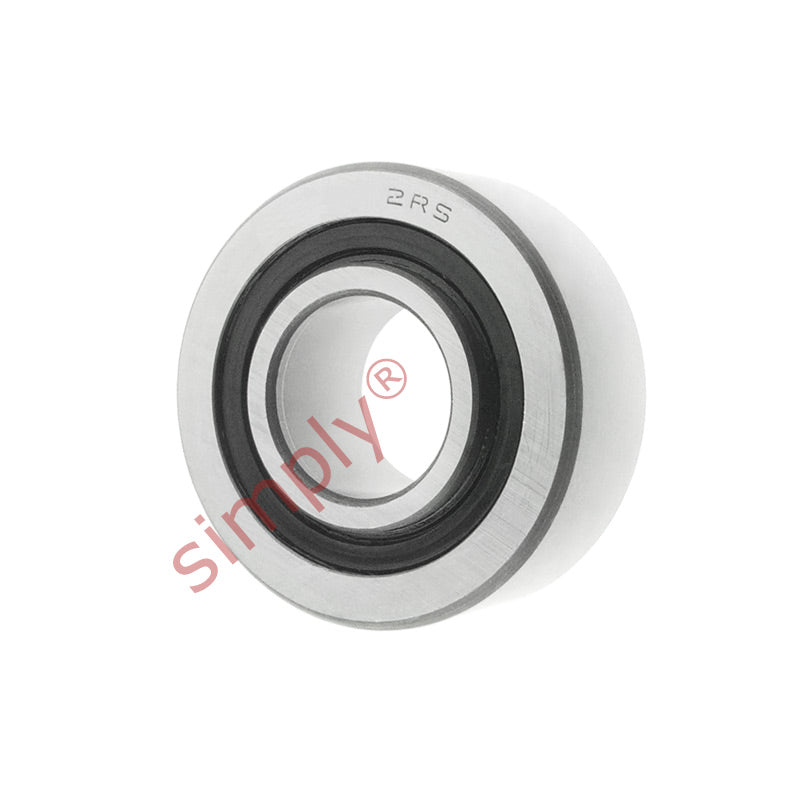

STO35 Budget Support Roller not Axial Guidance and Inner Sleeve 35x72x19.8mm
STO35 Budget Support Roller not Axial Guidance and Inner Sleeve 35x72x19.8mm
Regular price
£41.81
ex VAT£50.17inc. VAT
Regular price
Sale price
£41.81
ex VAT£50.17
inc. VAT
In stock
Price Break
10+
£37.21
19+
£35.12
29+
£34.70
39+
£34.28
49+
£33.87
74+
£33.45
99+
£31.36
199+
£30.94
249+
£30.52
499+
£30.10
999+
£29.27
Description
Description
Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 19.8mm
Technical
Technical

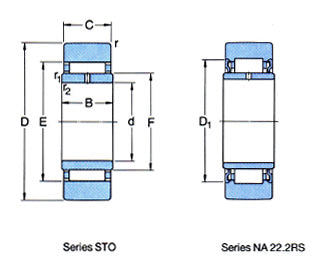

| D | 72mm |
|---|---|
| C | 19.8mm |
| d | 35mm |
| B | 20mm |
| F | 42mm |
| E | 50mm |
| r min | 0.6mm |
| r1r2 min | 0.6mm |
| Speed rating | 1100 rpm |
| Dynamic load | 25500 N |
| Basic static load | 40500 N |
| Fatigue load limit Pu | 5000 N |
| Max radial dynamic force | 36000 N |
| Max radial static force | 51000 N |
| Weight | 440 g |
