SKU: ST80-RHP

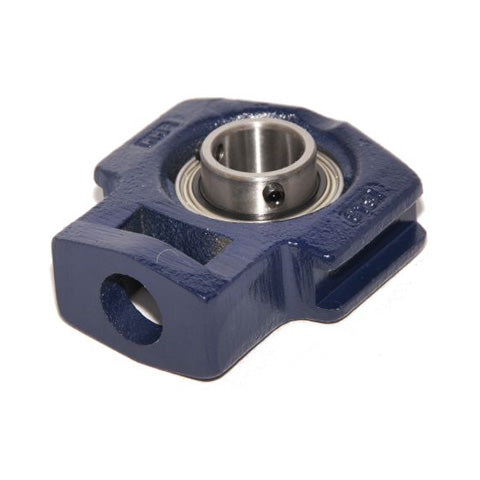

RHP ST80 Cast Iron Take Up Unit and 80mm Bore Insert
RHP ST80 Cast Iron Take Up Unit and 80mm Bore Insert
Regular price
£326.52
ex VAT£391.82inc. VAT
Regular price
Sale price
£326.52
ex VAT£391.82
inc. VAT
In stock
Price Break
10+
£290.60
20+
£274.28
30+
£271.01
40+
£267.75
50+
£264.48
75+
£261.22
100+
£244.89
200+
£241.63
250+
£238.36
500+
£235.09
1000+
£228.56
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80mm
- Style:
- ST
Technical
Technical
| Bore | 80mm |
|---|---|
| L | 231.5mm |
| L1 | 139.5mm |
| L2 | 20.5mm |
| L3 | 32mm |
| L4 | 125mm |
| L5 | 74mm |
| H | 184mm |
| H1 | 113mm |
| H2 | 70mm |
| H3 | 165.1mm |
| N | 42mm |
| A | 70mm |
| A1 | 54mm |
| A2 | 27mm |
| B | 82.55mm |
| s | 33.37mm |
| d1 | 98.5mm |
| Dynamic load | 71500 N |
| Static load | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-80G+insonly">1080-80G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
