SKU: ST7/8-RHP

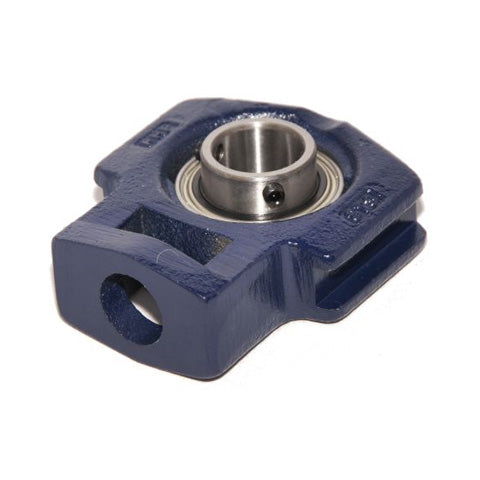

RHP ST7/8 Cast Iron Take Up Unit and 7/8 inch Bore Insert
RHP ST7/8 Cast Iron Take Up Unit and 7/8 inch Bore Insert
Regular price
£47.85
ex VAT£57.42inc. VAT
Regular price
Sale price
£47.85
ex VAT£57.42
inc. VAT
In stock
Price Break
10+
£42.58
20+
£40.19
30+
£39.71
40+
£39.24
50+
£38.76
75+
£38.28
100+
£35.89
200+
£35.41
250+
£34.93
500+
£34.45
1000+
£33.49
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- ST
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 3.858 inch |
| L1 | 2.441 inch |
| L2 | 0.453 inch |
| L3 | 0.63 inch |
| L4 | 1.988 inch |
| L5 | 1.437 inch |
| H | 3.484 inch |
| H1 | 2.303 inch |
| H2 | 1.26 inch |
| H3 | 2.992 inch |
| N | 0.886 inch |
| A | 1.417 inch |
| A1 | 1.083 inch |
| A2 | 0.531 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-7/8G+insonly">1025-7/8G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
