SKU: ST60DEC-RHP

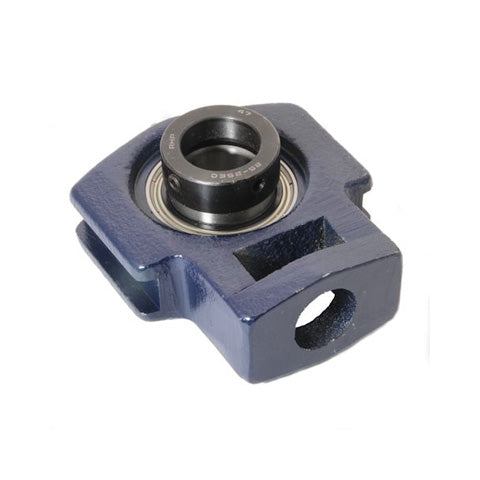

RHP ST60DEC Cast Iron Take Up Unit and 60mm Bore Insert

RHP ST60DEC Cast Iron Take Up Unit and 60mm Bore Insert
Regular price £168.93 ex VAT£202.72inc. VAT
Regular price Sale price £168.93 ex VAT£202.72 inc. VAT
Sale Sold out

In stock

Price Break
10+ £150.35
20+ £141.90
30+ £140.22
40+ £138.53
50+ £136.84
75+ £135.15
100+ £126.70
200+ £125.01
250+ £123.32
500+ £121.63
1000+ £118.25
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

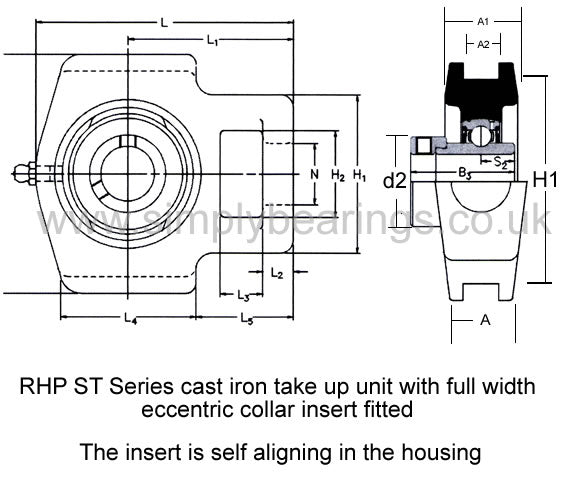

Technical
Bore 60mm
L 192mm
L1 119mm
L2 19mm
L3 32mm
L4 97.5mm
L5 70mm
H 146mm
H1 101mm
H2 64mm
H3 130mm
N 35mm
A 63.5mm
A1 46.5mm
A2 27mm
B3 77.82mm
s2 31.02mm
d2 84.12mm
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 5.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
