SKU: ST40-RHP

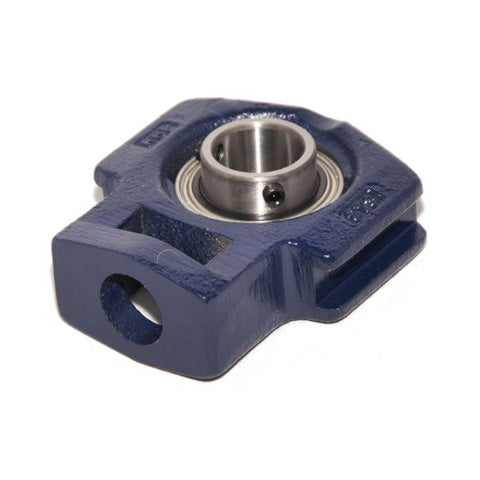

RHP ST40 Cast Iron Take Up Unit and 40mm Bore Insert
RHP ST40 Cast Iron Take Up Unit and 40mm Bore Insert
Regular price
£71.80
ex VAT£86.16inc. VAT
Regular price
Sale price
£71.80
ex VAT£86.16
inc. VAT
In stock
Price Break
10+
£63.90
20+
£60.31
30+
£59.59
40+
£58.87
50+
£58.16
75+
£57.44
100+
£53.85
200+
£53.13
250+
£52.41
500+
£51.69
1000+
£50.26
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- ST
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 143.5mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
