SKU: ST35EC-RHP

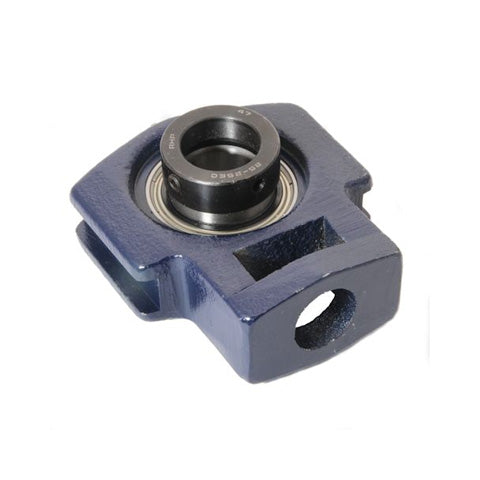

RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
Regular price
£64.23
ex VAT£77.08inc. VAT
Regular price
Sale price
£64.23
ex VAT£77.08
inc. VAT
In stock
Price Break
10+
£57.16
20+
£53.95
30+
£53.31
40+
£52.67
50+
£52.03
75+
£51.38
100+
£48.17
200+
£47.53
250+
£46.89
500+
£46.25
1000+
£44.96
Share this product
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- ST
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 124mm |
| L1 | 75.5mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
