SKU: ST2R-RHP

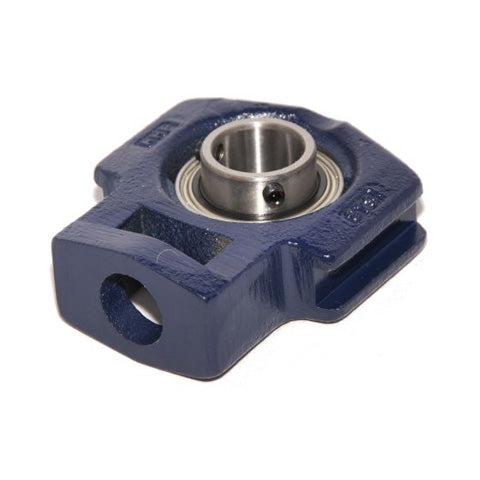

RHP ST2R Cast Iron Take Up Unit and 2 inch Bore Insert

RHP ST2R Cast Iron Take Up Unit and 2 inch Bore Insert
Regular price £94.58 ex VAT£113.50inc. VAT
Regular price Sale price £94.58 ex VAT£113.50 inc. VAT
Sale Sold out

In stock

Price Break
10+ £84.18
20+ £79.45
30+ £78.50
40+ £77.56
50+ £76.61
75+ £75.67
100+ £70.94
200+ £69.99
250+ £69.05
500+ £68.10
1000+ £66.21
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2 inch
L 5.945 inch
L1 3.563 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
