SKU: ST20A-RHP

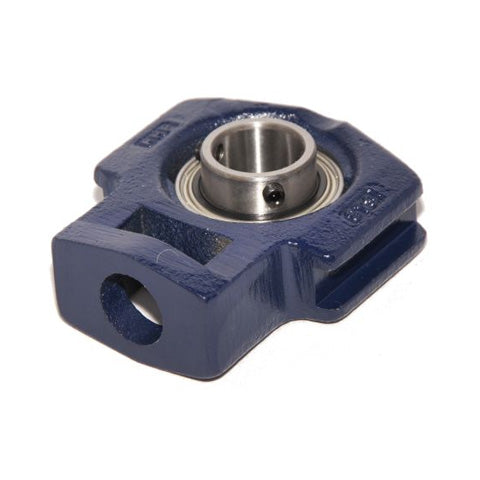

RHP ST20A Cast Iron Take Up Unit and 20mm Bore Insert
RHP ST20A Cast Iron Take Up Unit and 20mm Bore Insert
Regular price
£34.90
ex VAT£41.88inc. VAT
Regular price
Sale price
£34.90
ex VAT£41.88
inc. VAT
In stock
Price Break
10+
£31.06
20+
£29.32
30+
£28.97
40+
£28.62
50+
£28.27
75+
£27.92
100+
£26.17
200+
£25.83
250+
£25.48
500+
£25.13
1000+
£24.43
Share this product
Description
Description
|
RHP ST A Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- ST
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 95.5mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| N | 22.5mm |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B1 | 25.77mm |
| s1 | 7.56mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20G+insonly">1220-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
