SKU: ST2.1/4-RHP

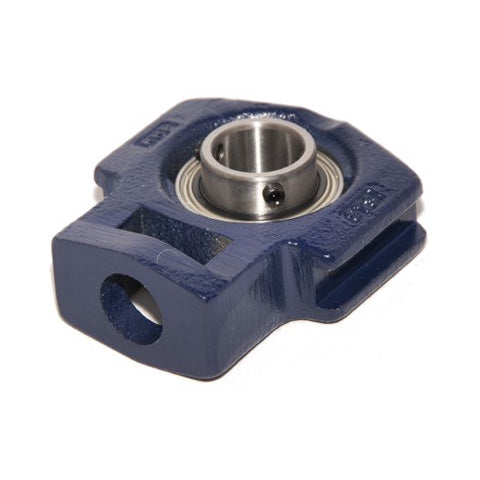

RHP ST2-1/4 Cast Iron Take Up Unit and 2-1/4 inch Bore Insert

RHP ST2-1/4 Cast Iron Take Up Unit and 2-1/4 inch Bore Insert
Regular price £160.63 ex VAT£192.76inc. VAT
Regular price Sale price £160.63 ex VAT£192.76 inc. VAT
Sale Sold out

In stock

Price Break
10+ £142.96
20+ £134.93
30+ £133.32
40+ £131.72
50+ £130.11
75+ £128.51
100+ £120.47
200+ £118.87
250+ £117.26
500+ £115.66
1000+ £112.44
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/4 inch
L 7.559 inch
L1 4.685 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 5.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
