SKU: ST1.5/8-RHP

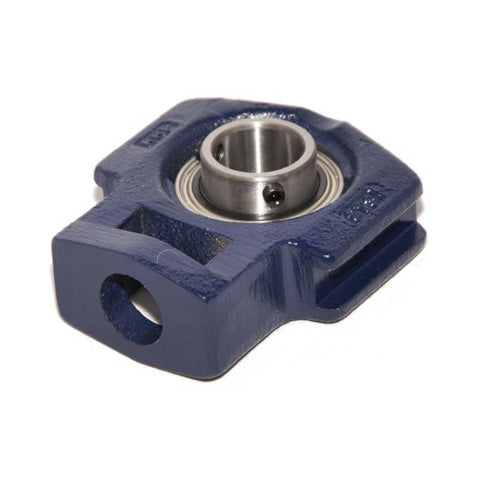

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
Regular price
£85.91
ex VAT£103.09inc. VAT
Regular price
Sale price
£85.91
ex VAT£103.09
inc. VAT
In stock
Price Break
10+
£76.46
19+
£72.16
29+
£71.31
39+
£70.45
49+
£69.59
74+
£68.73
99+
£64.43
199+
£63.57
249+
£62.71
499+
£61.86
999+
£60.14
Couldn't load pickup availability
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- ST
Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| L | 5.787 inch |
| L1 | 3.512 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
