SKU: ST1.3/8DEC-RHP

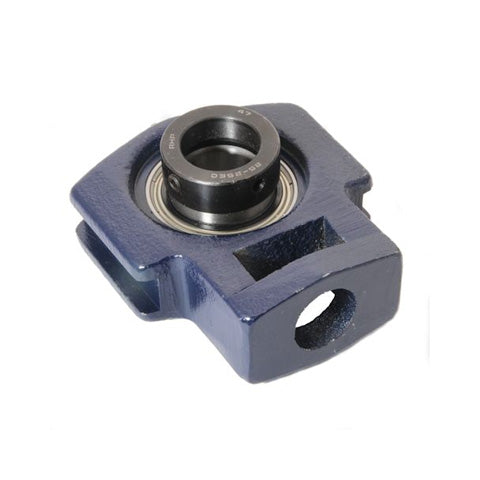

RHP ST1-3/8DEC Cast Iron Take Up Unit and 1-3/8 inch Bore Insert

RHP ST1-3/8DEC Cast Iron Take Up Unit and 1-3/8 inch Bore Insert
Regular price £75.52 ex VAT£90.62inc. VAT
Regular price Sale price £75.52 ex VAT£90.62 inc. VAT
Sale Sold out

In stock

Price Break
10+ £67.21
20+ £63.44
30+ £62.68
40+ £61.93
50+ £61.17
75+ £60.42
100+ £56.64
200+ £55.89
250+ £55.13
500+ £54.38
1000+ £52.86
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/8 inch
L 4.882 inch
L1 2.972 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B3 2.015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-3/8DECG+insonly">1035-1-3/8DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
