SKU: ST1.1/2DEC-RHP

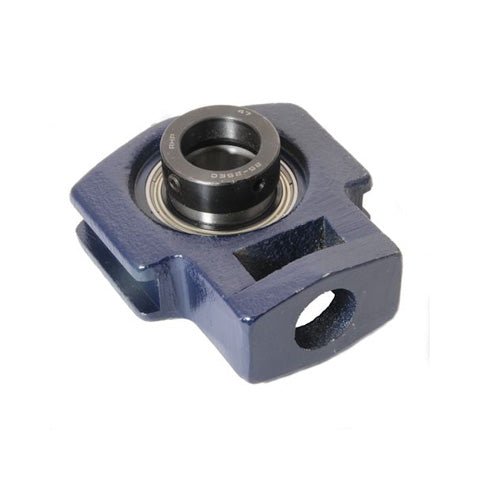

RHP ST1-1/2DEC Cast Iron Take Up Unit and 1-1/2 inch Bore Insert

RHP ST1-1/2DEC Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
Regular price £89.57 ex VAT£107.48inc. VAT
Regular price Sale price £89.57 ex VAT£107.48 inc. VAT
Sale Sold out

In stock

Price Break
10+ £79.72
20+ £75.24
30+ £74.35
40+ £73.45
50+ £72.55
75+ £71.66
100+ £67.18
200+ £66.28
250+ £65.39
500+ £64.49
1000+ £62.70
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/2 inch
L 5.65 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B3 2.218 inch
s2 0.845 inch
d2 2.374 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2DECG+insonly">1040-1-1/2DECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
