SKU: SSUCT.212
SSUCT212 Metric Stainless Steel Take Up Unit Housing with 60mm Bore Stainless Insert
SSUCT212 Metric Stainless Steel Take Up Unit Housing with 60mm Bore Stainless Insert
Regular price
£201.83
ex VAT£242.20inc. VAT
Regular price
Sale price
£201.83
ex VAT£242.20
inc. VAT
Equivalent to: ST60
In stock
Price Break
3+
£179.63
4+
£169.54
9+
£167.52
19+
£165.50
49+
£163.48
99+
£161.46
499+
£151.37
999+
£149.35
1999+
£147.33
2999+
£145.32
4999+
£141.28
Description
Description
|

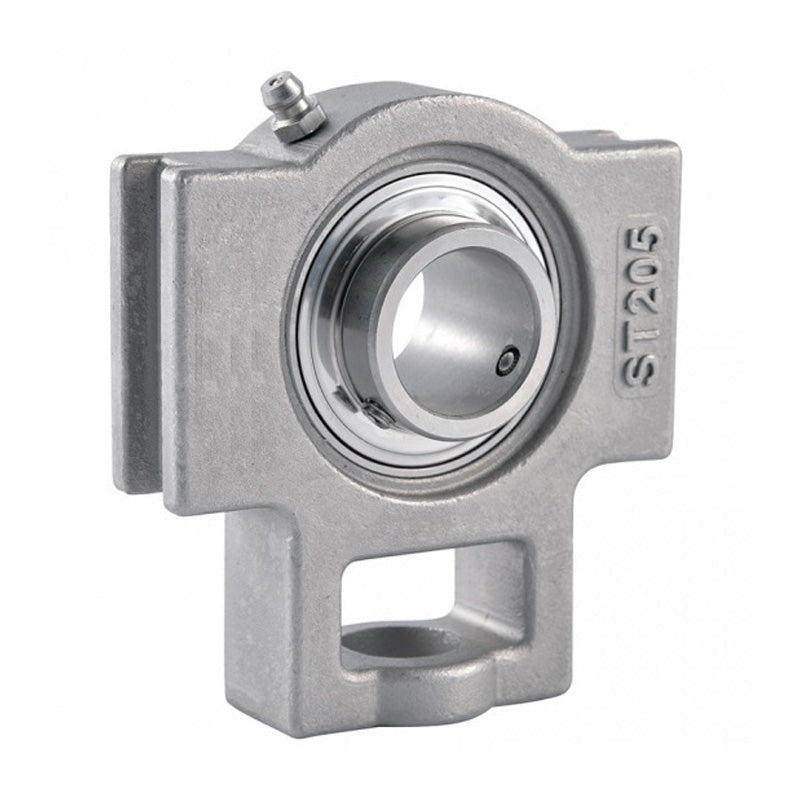

SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: ST60
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- SSUCT
Technical
Technical
| d | 60mm |
|---|---|
| o | 32mm |
| g | 19mm |
| p | 102mm |
| q | 64mm |
| s | 35mm |
| b | 102mm |
| K | 22mm |
| e | 130mm |
| a | 146mm |
| w | 194mm |
| j | 64mm |
| l | 46mm |
| h | 119mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Weight | 5.0 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
