SKU: SSUCFL.206-19

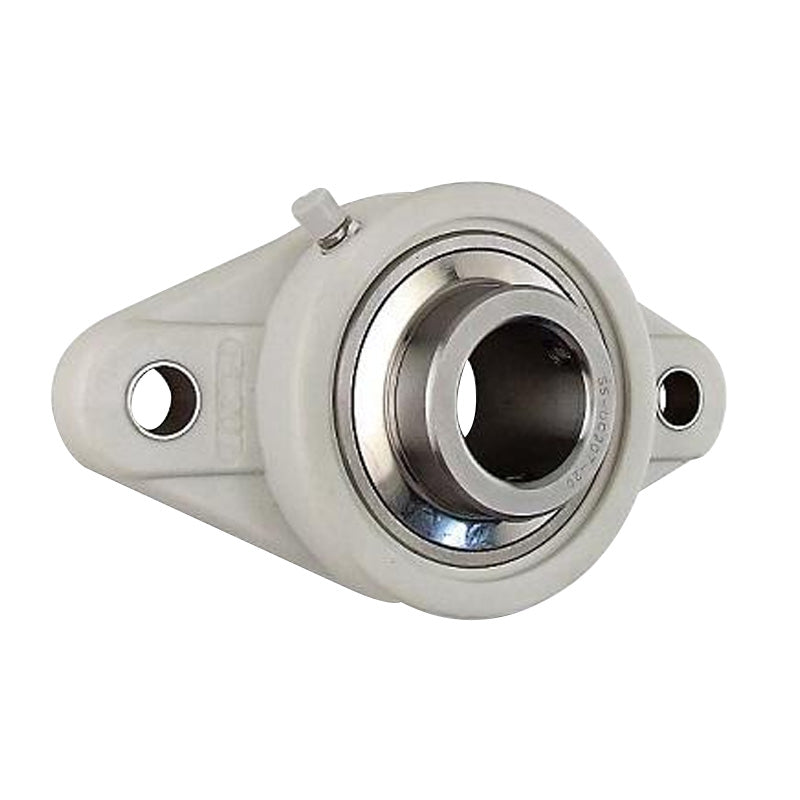

SSUCFL206-19 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-3/16 inch Bore Stainless Insert - Allow 2-3 Days
SSUCFL206-19 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-3/16 inch Bore Stainless Insert - Allow 2-3 Days
Regular price
£39.88
ex VAT£47.86inc. VAT
Regular price
Sale price
£39.88
ex VAT£47.86
inc. VAT
Equivalent to: SFT1-3/16
In stock
Price Break
3+
£39.48
4+
£37.89
9+
£37.09
19+
£35.89
49+
£35.09
99+
£33.10
499+
£27.92
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: SFT1-3/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| L | 31mm |
| S | 16mm |
| b | 80mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt | 14mm |
| Weight | 0.94 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
