SKU: SSUCFL.202-10

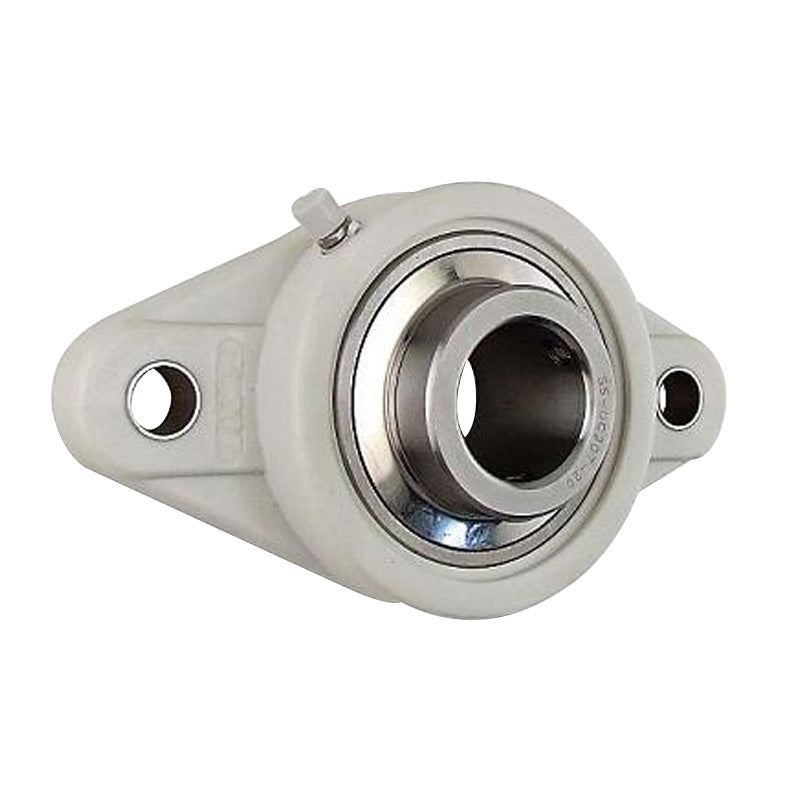

SSUCFL202-10 Imperial Two Bolt Oval Stainless Steel Flange Housing with 5/8 inch Bore Stainless Insert
SSUCFL202-10 Imperial Two Bolt Oval Stainless Steel Flange Housing with 5/8 inch Bore Stainless Insert
Regular price
£39.04
ex VAT£46.85inc. VAT
Regular price
Sale price
£39.04
ex VAT£46.85
inc. VAT
Equivalent to: SFT5/8
In stock
Price Break
3+
£34.74
4+
£32.79
9+
£32.40
19+
£32.01
49+
£31.62
99+
£31.23
499+
£29.28
999+
£28.89
1999+
£28.50
2999+
£28.11
4999+
£27.32
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: SFT5/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| a | 113mm |
| e | 90mm |
| i | 15mm |
| g | 11mm |
| L | 25.5mm |
| S | 12mm |
| b | 60mm |
| Z | 33.3mm |
| Bi | 31.0mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.49 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 8800 rpm |
