SKU: SSUC.214

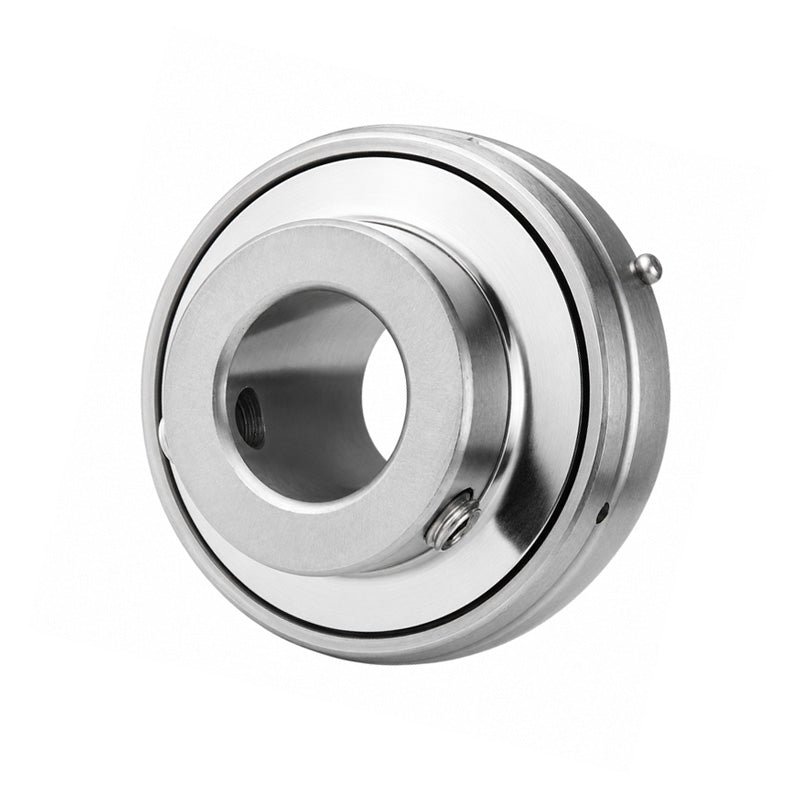

SSUC214 Metric Stainless Steel Bearing Insert with 70mm Bore 125mm Outside Dia
SSUC214 Metric Stainless Steel Bearing Insert with 70mm Bore 125mm Outside Dia
Regular price
£93.18
ex VAT£111.82inc. VAT
Regular price
Sale price
£93.18
ex VAT£111.82
inc. VAT
In stock
Price Break
3+
£82.93
4+
£78.27
9+
£77.34
19+
£76.41
49+
£75.47
99+
£74.54
499+
£69.88
999+
£68.95
1999+
£68.02
2999+
£67.09
4999+
£65.22
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Style:
- SSUC
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| Bi | 74.6mm |
| Be | 30mm |
| n | 30.2mm |
| m | 44.4mm |
| G | 12mm |
| Grub screw | M12x1.5 |
| Weight | 2.05 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
