SKU: SSUC.210

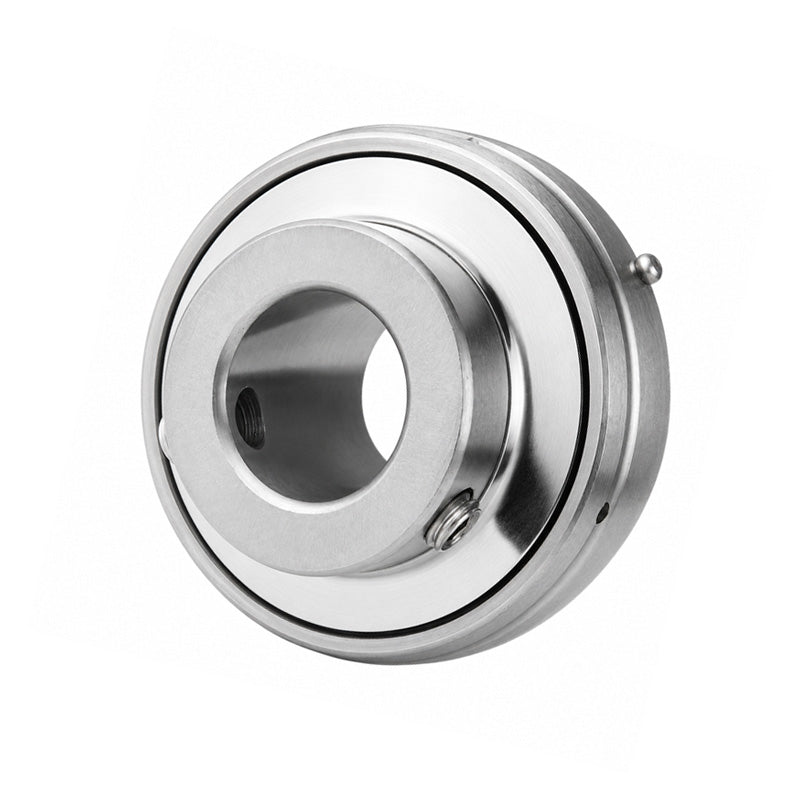

SSUC210 Metric Stainless Steel Bearing Insert with 50mm Bore 90mm Outside Dia
SSUC210 Metric Stainless Steel Bearing Insert with 50mm Bore 90mm Outside Dia
Regular price
£37.70
ex VAT£45.24inc. VAT
Regular price
Sale price
£37.70
ex VAT£45.24
inc. VAT
In stock
Price Break
3+
£33.55
4+
£31.67
9+
£31.29
19+
£30.91
49+
£30.54
99+
£30.16
499+
£28.27
999+
£27.90
1999+
£27.52
2999+
£27.14
4999+
£26.39
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- SSUC
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 0.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
