SKU: SSUC.208-24

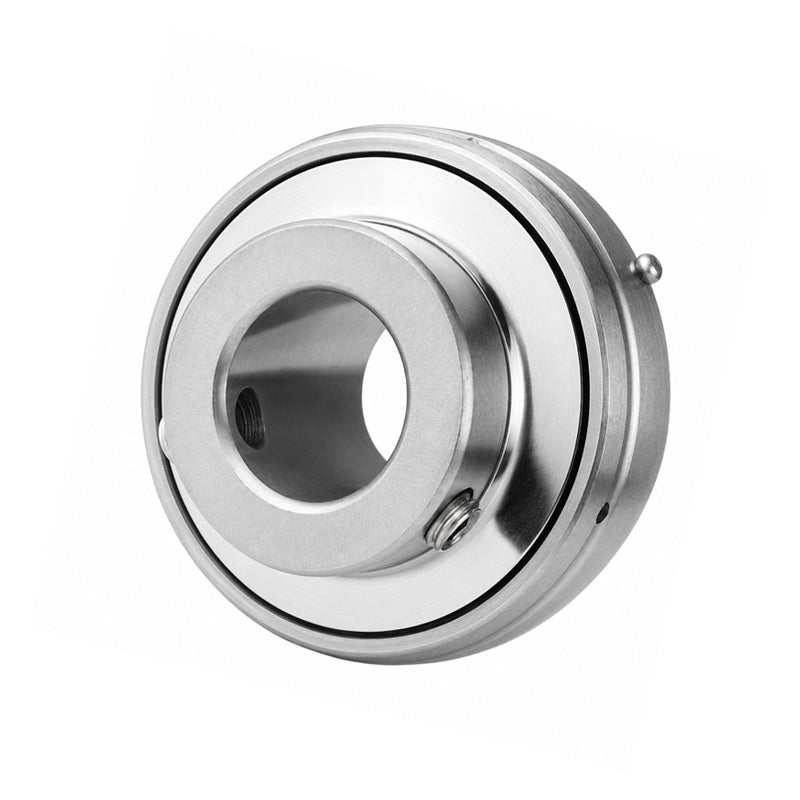

SSUC208-24 Imperial Stainless Steel Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
SSUC208-24 Imperial Stainless Steel Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
£27.91
ex VAT£33.49inc. VAT
Regular price
Sale price
£27.91
ex VAT£33.49
inc. VAT
In stock
Price Break
3+
£24.84
4+
£23.44
9+
£23.16
19+
£22.88
49+
£22.60
99+
£22.33
499+
£20.93
999+
£20.65
1999+
£20.37
2999+
£20.09
4999+
£19.54
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- SSUC
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| n | 19mm |
| m | 30.2mm |
| G | 8mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.68 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
