SKU: SSUC.208

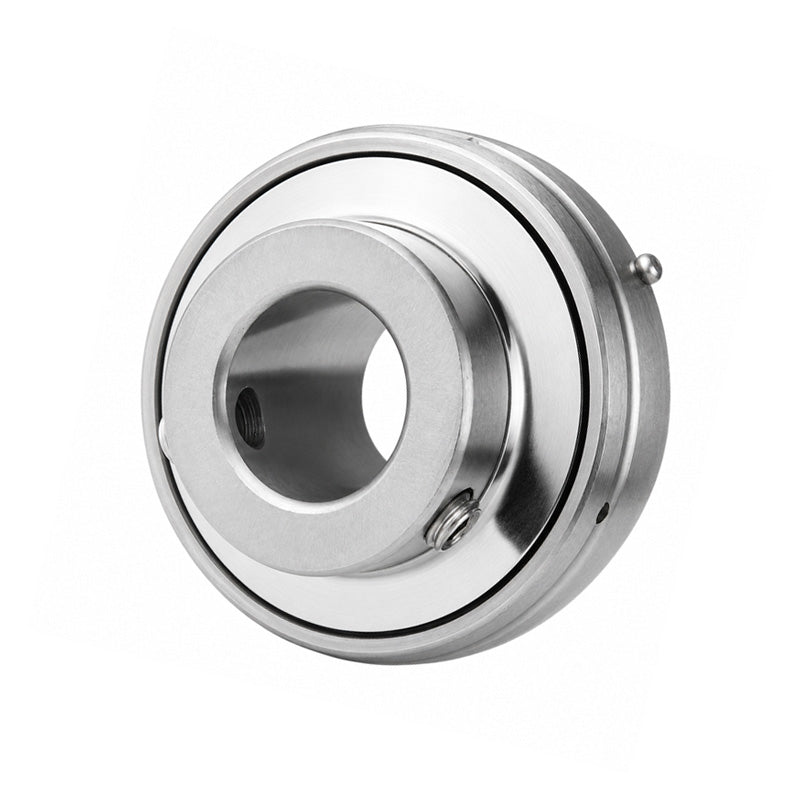

SSUC208 Metric Stainless Steel Bearing Insert with 40mm Bore 80mm Outside Dia
SSUC208 Metric Stainless Steel Bearing Insert with 40mm Bore 80mm Outside Dia
Regular price
£30.84
ex VAT£37.01inc. VAT
Regular price
Sale price
£30.84
ex VAT£37.01
inc. VAT
In stock
Price Break
10+
£27.45
19+
£25.91
29+
£25.60
39+
£25.29
49+
£24.98
74+
£24.67
99+
£23.13
199+
£22.82
249+
£22.51
499+
£22.20
999+
£21.59
Couldn't load pickup availability
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- SSUC
- Type:
- Spherical Outer
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| n | 19mm |
| m | 30.2mm |
| G | 8mm |
| Grub screw | M8x1.0 |
| Weight | 0.65 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
