SKU: SSUC.206

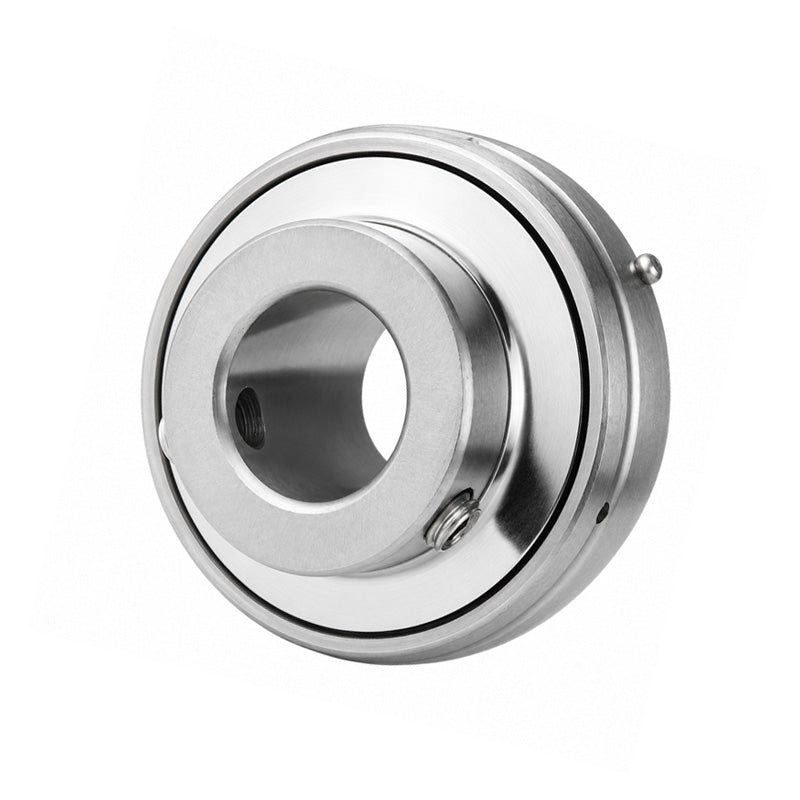

SSUC206 Metric Stainless Steel Bearing Insert with 30mm Bore 62mm Outside Dia
SSUC206 Metric Stainless Steel Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
£8.88
ex VAT£10.66inc. VAT
Regular price
Sale price
£8.88
ex VAT£10.66
inc. VAT
In stock
Price Break
3+
£7.90
4+
£7.46
9+
£7.37
19+
£7.28
49+
£7.19
99+
£7.10
499+
£6.66
999+
£6.57
1999+
£6.48
2999+
£6.39
4999+
£6.22
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- SSUC
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub screw | M6x1 |
| Weight | 0.32 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
