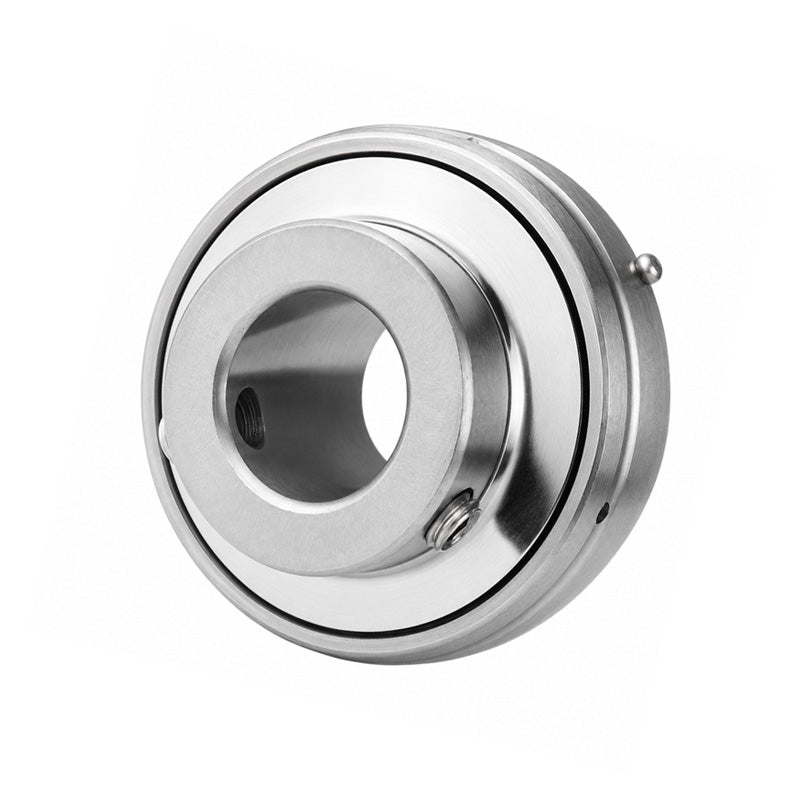

SSUC204 Metric Stainless Steel Bearing Insert with 20mm Bore 47mm Outside Dia
SSUC204 Metric Stainless Steel Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
£8.08
ex VAT£9.70inc. VAT
Regular price
Sale price
£8.08
ex VAT£9.70
inc. VAT
In stock
Price Break
3+
£7.19
4+
£6.79
9+
£6.71
19+
£6.63
49+
£6.54
99+
£6.46
499+
£6.06
999+
£5.98
1999+
£5.90
2999+
£5.82
4999+
£5.66
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- SSUC
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
