SKU: SSBP.PL.205

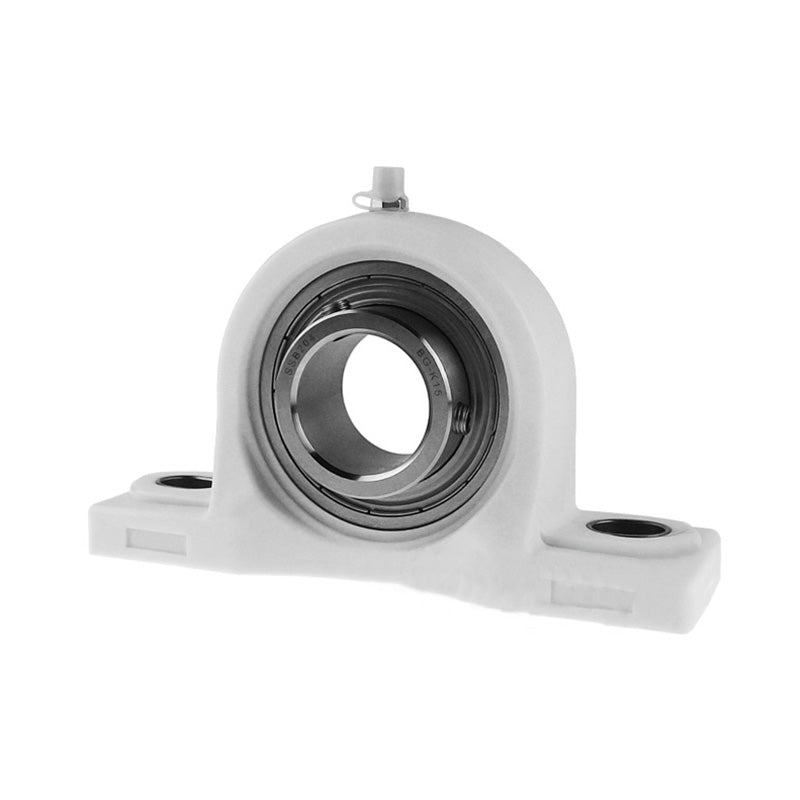

SSBPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
SSBPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
Regular price
£32.08
ex VAT£38.50inc. VAT
Regular price
Sale price
£32.08
ex VAT£38.50
inc. VAT
In stock
Price Break
10+
£28.55
19+
£26.95
29+
£26.63
39+
£26.31
49+
£25.98
74+
£25.66
99+
£24.06
199+
£23.74
249+
£23.42
499+
£23.10
999+
£22.46
Couldn't load pickup availability
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 25mm |
|---|---|
| h | 36mm |
| a | 140.5mm |
| e | 105mm |
| b | 38mm |
| g | 14.5mm |
| s1 | 11mm |
| s2 | 14mm |
| w | 71.5mm |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.14kg |
| Temperature Range | -35 to 102 deg C |
