SKU: SS.SB205

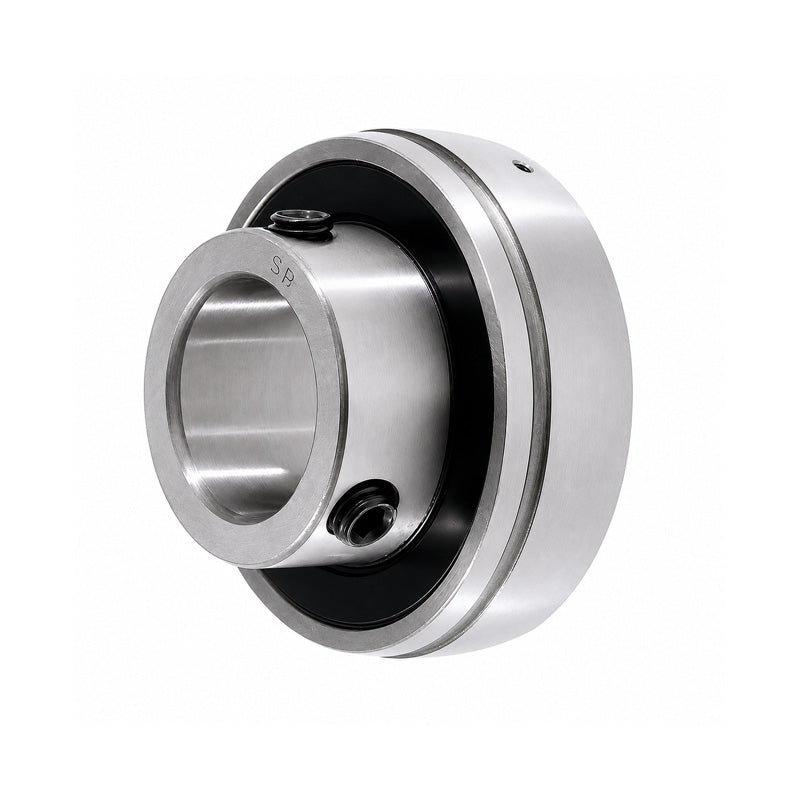

SSSB205 Stainless Steel Metric Bearing Insert with 25mm Bore 52mm Outside Dia
SSSB205 Stainless Steel Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
£13.71
ex VAT£16.45inc. VAT
Regular price
Sale price
£13.71
ex VAT£16.45
inc. VAT
In stock
Price Break
3+
£12.20
5+
£11.52
9+
£11.38
19+
£11.24
49+
£11.11
74+
£10.97
99+
£10.28
199+
£10.15
249+
£10.01
499+
£9.87
999+
£9.60
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| Shaft Dia | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1100 kgf |
| Static Load | 710 kgf |
| Weight | 0.18kg |
